MPPCs (SiPMs) / MPPC arrays

Single MPPCs (SiPMs) and multi-channel MPPCs

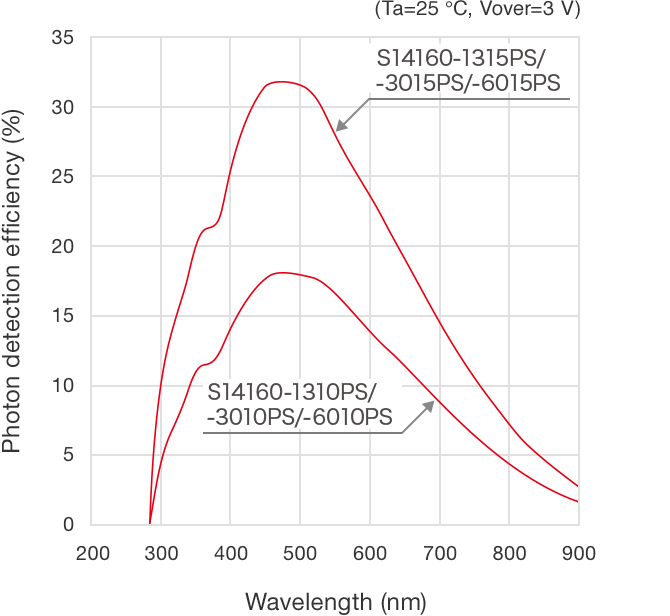

MPPC S14160 series
VISFor wide dynamic range
MPPC S14160 series
  • Academic research
  • Measuring instruments

The S14160 series is a small-pixel MPPC that features wide dynamic range. It employs minute pixels (10 µm, 15 µm) and provides low crosstalk, low dark count, and high fill factor.

Package variation
Ceramic Metal SMD Tiling Multichannel

Pixel pitch
10 μm 15 μm 25 μm 50 μm 75 μm

MPPC S14160/S14161 series
VISFor PET scanners
MPPC S14160/S14161 series
  • PET

The S14160/S14161 series are MPPCs that feature high detection efficiency and low operating voltage for radiation monitors and PET scanners. The dead space between channels has been reduced, and the space around the photosensitive area has been reduced to 0.2 mm from the edges. The shape is suitable for four-side buttable tiling.

Package variation
Ceramic Metal SMD Tiling Multichannel

Pixel pitch
10 μm 15 μm 25 μm 50 μm 75 μm

MPPC S13360/S13362 series
VISFor precision measurement
MPPC S13360/S13362 series
  • Academic research
  • Measuring instruments

These MPPCs are for precision measurement featuring high photon detection efficiency as well as low crosstalk, low afterpulses, and low dark count.

Package variation
Ceramic Metal SMD Tiling Multichannel

※ Cooling type only
Pixel pitch
10 μm 15 μm 25 μm 50 μm 75 μm

MPPC S13360/S13361 series
VISFor precision measurement (TSV type)
MPPC S13360/S13361/S13363 series
  • Academic research
  • PET
  • Measuring instruments

These MPPCs are for precision measurement employing a TSV structure. These are suitable for multi-channel placement with tiling.

Package variation
Ceramic Metal SMD Tiling Multichannel

Pixel pitch
10 μm 15 μm 25 μm 50 μm 75 μm

MPPC S14420 series
VIS to NIRFor visible light
MPPC S14420/S14422 series
  • Measuring instruments

These MPPCs features high photon detection efficiency in the visible to near infrared regions.
The lineup includes uncooled type S14420 series and the cooling type S14422 series.

Package variation
Ceramic Metal SMD Tiling Multichannel

Pixel pitch
10 μm 15 μm 25 μm 50 μm 75 μm

MPPC S13720 series
NIRFor near infrared
MPPC S15639-1325PS
  • LiDAR

The S15639-1325PS is an MPPC with high sensitivity in the near infrared region that is used in LiDAR.

Package variation
Ceramic Metal SMD Tiling Multichannel

Pixel pitch
10 μm 15 μm 25 μm 50 μm 75 μm
