TDIカメラ
C10000-801
C10000-801は、高速かつ高感度を両立し、インラインをはじめとする幅広い用途でお使い頂ける高精度カメラです。フレーム読み出しモード搭載により、視野調整やフォーカス合わせ等が容易に行えます。
| 型名 | C10000-801 |
|---|---|
| 撮像素子 | 背面照射タイプ |
| 有効画素数 | 2048(H)×128(V) |
| 画素サイズ | 12 μm(H)×12 μm(V) |
| 有効撮像エリア | 24.58 mm(H)×1.536 mm(V) |
| 読み出しモード | TDI読み出しモード/フレーム読み出しモード① |
| TDI読み出し方向 | 双方向 |
| TDI出力チャンネル | 4 TAP（512×128） |
| アンチブルーミング機能 | 有（飽和電荷量の100倍まで対応） |
| TDIピクセルクロック | 30 MHz |
| TDIラインレート | 0.457 kHz～50 kHz |
| TDIラインレートコントロール | 内部設定②/外部トリガ |
| 飽和電荷量 | 80 000 electrons （typ.） |
| 読み出しノイズ | 50 electrons rms （typ.） |
| ダイナミックレンジ | 1600:1 |
| ビニング読み出し | 2×2、4×4 |
| アナログゲイン | 1 倍～5 倍（16段階） |
| A/Dコンバータ | 12 bit/8 bit③ |
| 画像処理 | リアルタイムシェーディング補正/背景減算補正 |
| インターフェース | Camera Link base configuration |
| カメラコントロール | Camera Link（シリアルコマンドラインを使用） |
| カメラ出力クロック | 60 MHz |
| カメラ出力チャンネル | 2 TAP（1024×128） |
| コネクタ仕様 | Mini-Camera Link (SDR)×1 |
| レンズマウント | Fマウント |
| 電源 | AC100 V～AC240 V、50 Hz/60 Hz |
| 消費電力 | 約55 VA |
| 動作周囲温度 | 0 ℃～+40 ℃ |
| 保存周囲温度 | -10 ℃～+50 ℃ |
| 動作･保存周囲湿度 | 90 ％ (ただし結露しないこと) |
| 動作周囲湿度 | 30 %～70 ％ (ただし結露しないこと) |
② TDI ラインレートの内部設定は33 nsステップで可能です。
③ シリアルコマンドで切り替え可能です。

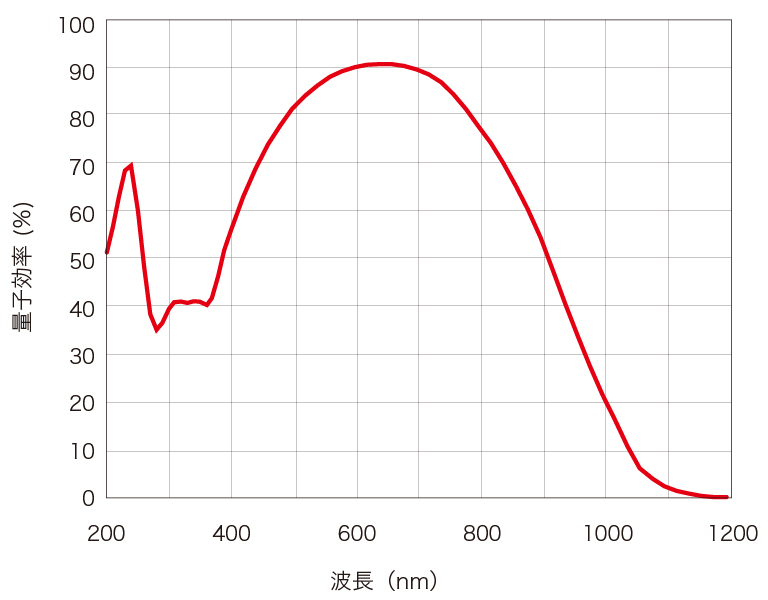

分光感度特性

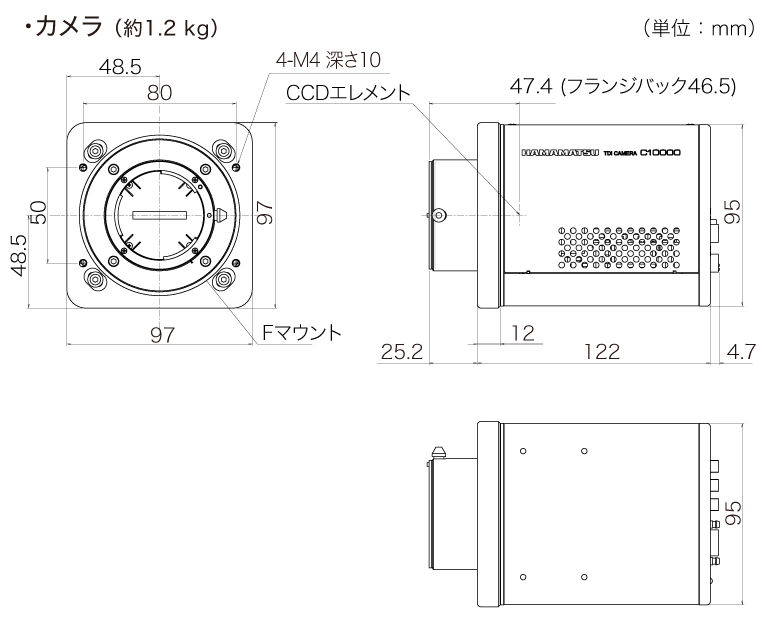

外形寸法図
