20Wキセノンフラッシュランプ
メタル管を採用することで高出力を可能にしたキセノンフラッシュランプです。発光波長範囲 160 nm ～ 7500 nmのMgF^2窓材質もラインアップしており、幅広い検査・計測・分析に適しています。また、約1.5倍の高出力化を可能にしたミラー内蔵の高出力モデルも用意しています。
特性

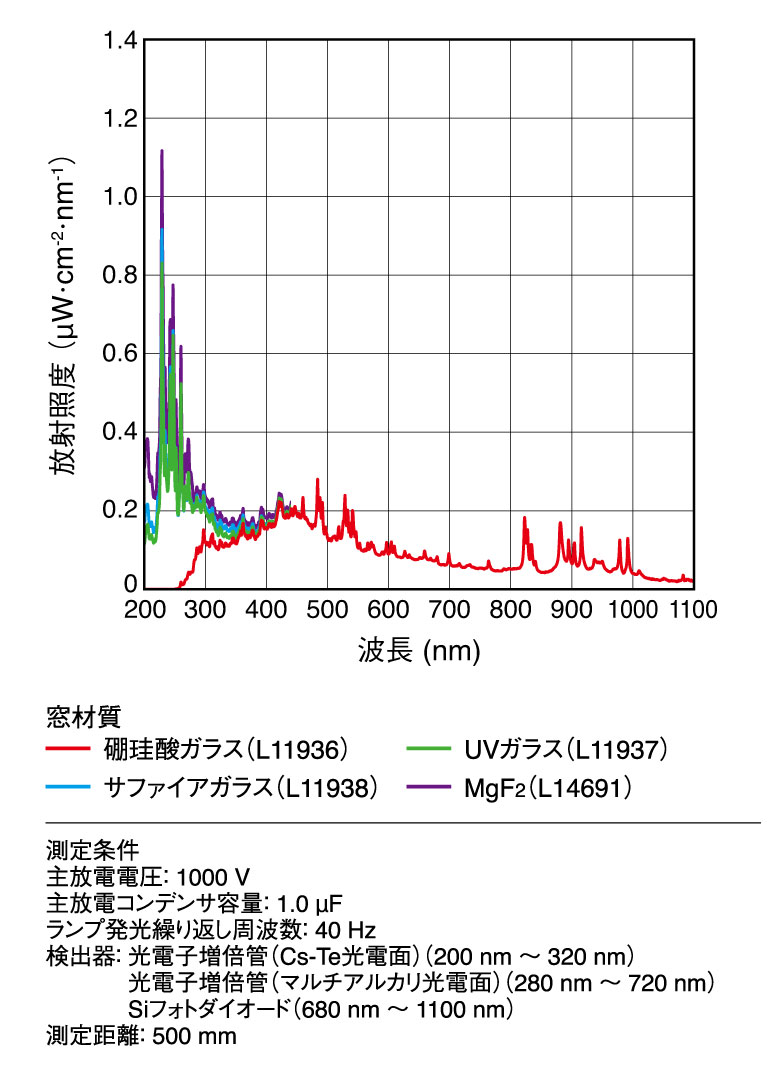

分光放射照度 (代表値)

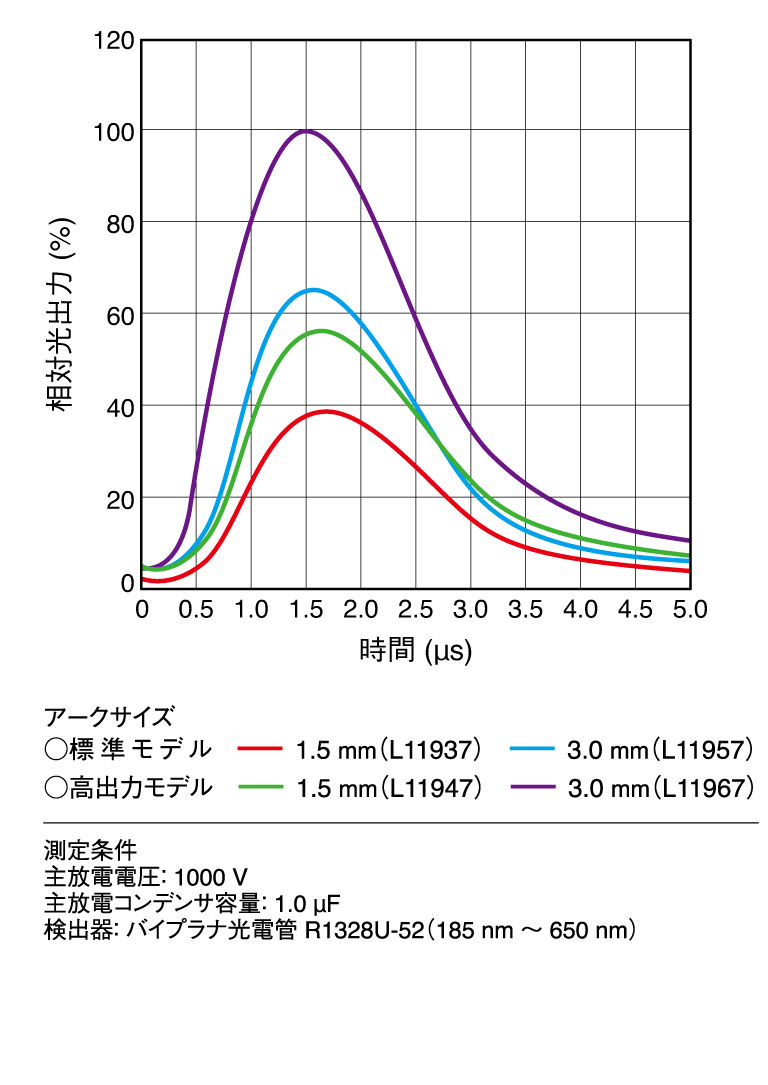

発光パルス波形 (代表値)

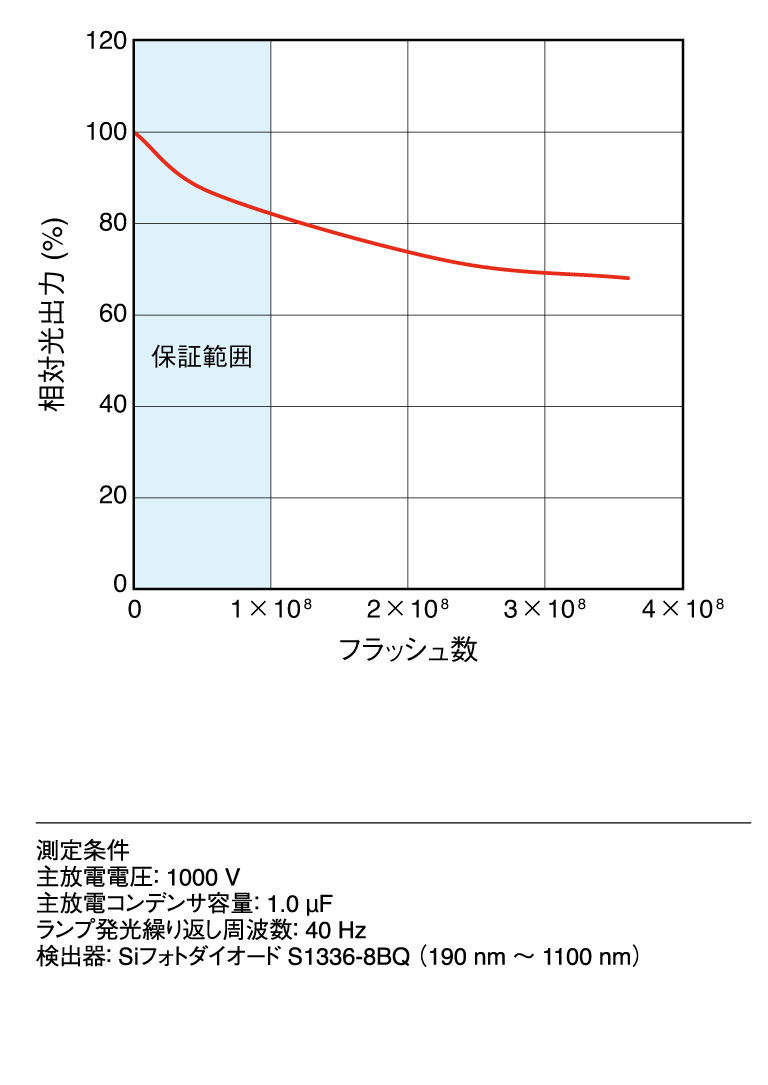

寿命特性 (L11947)(代表値)
仕様
| 項目 | 標準モデル | 単位 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| L11936 | L11956 | L11937 | L11957 | L11938 | L11958 | L14691 | L14693 | |||
| アークサイズ | 1.5 | 3.0 | 1.5 | 3.0 | 1.5 | 3.0 | 1.5 | 3.0 | mm | |
| 窓材質 | 硼珪酸ガラス | UVガラス | サファイアガラス | MgF2 | － | |||||
| 側管材質 | 金属 | － | ||||||||
| 発光波長範囲 | 240 ～ 2500 | 185 ～ 2500 | 190 ～ 5000 | 160 ～ 7500 | nm | |||||
| 主放電電圧範囲 | 300 ～ 1000 | V | ||||||||
| 推奨主放電電圧範囲 | 700 ～ 1000 | V | ||||||||
| 最大ランプ入力エネルギー (1フラッシュ) |
動作条件例に記載 | mJ | ||||||||
| 最大ランプ発光繰り返し周波数 (*1) | 1000 | Hz | ||||||||
| 最大平均ランプ入力(連続) | 動作条件例に記載 | W | ||||||||
| 光出力安定性 (*2) | Typ. | 1.0 | ％ CV | |||||||
| 4.5 | ％ p-p | |||||||||
| Max. | 2.0 | ％ CV | ||||||||
| 6.0 | ％ p-p | |||||||||
| 保証寿命 (*3) | 1 × 108 ～ 1 × 109 | フラッシュ | ||||||||
| トリガ電圧 | 5 ～ 7 | kV p-p | ||||||||
| 冷却方式 | 自然空冷 | － | ||||||||
| 動作温度範囲 | +5 ～ +40 | ℃ | ||||||||
| 保存温度範囲 | -40 ～ +90 | ℃ | ||||||||
| 動作湿度範囲 | 85 ％以下(結露なきこと) | － | ||||||||
| 保存湿度範囲 | 95 ％以下(結露なきこと) | － | ||||||||
| トリガソケット(別売) (*4) | E10977 | E10978 | E10977 | E10978 | E10977 | E10978 | E10977 | E10978 | － | |
| 項目 | 高出力モデル | 単位 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| L11936 | L11956 | L11937 | L11957 | L11938 | L11958 | L14691 | L14693 | |||
| アークサイズ | 1.5 | 3.0 | 1.5 | 3.0 | 1.5 | 3.0 | 1.5 | 3.0 | mm | |
| 窓材質 | 硼珪酸ガラス | UVガラス | サファイアガラス | MgF2 | － | |||||
| 側管材質 | 金属 | － | ||||||||
| 発光波長範囲 | 240 ～ 2500 | 185 ～ 2500 | 190 ～ 5000 | 160 ～ 7500 | nm | |||||
| 主放電電圧範囲 | 300 ～ 1000 | V | ||||||||
| 推奨主放電電圧範囲 | 700 ～ 1000 | V | ||||||||
| 最大ランプ入力エネルギー (1フラッシュ) |
動作条件例に記載 | mJ | ||||||||
| 最大ランプ発光繰り返し周波数 (*1) | 100 | Hz | ||||||||
| 最大平均ランプ入力(連続) | 動作条件例に記載 | W | ||||||||
| 光出力安定性 (*2) | Typ. | 1.0 | ％ CV | |||||||
| 4.5 | ％ p-p | |||||||||
| Max. | 2.0 | ％ CV | ||||||||
| 6.0 | ％ p-p | |||||||||
| 保証寿命 (*3) | 1 × 108 ～ 1 × 109 | フラッシュ | ||||||||
| トリガ電圧 | 5 ～ 7 | kV p-p | ||||||||
| 冷却方式 | 自然空冷 | － | ||||||||
| 動作温度範囲 | +5 ～ +40 | ℃ | ||||||||
| 保存温度範囲 | -40 ～ +90 | ℃ | ||||||||
| 動作湿度範囲 | 85 ％以下(結露なきこと) | － | ||||||||
| 保存湿度範囲 | 95 ％以下(結露なきこと) | － | ||||||||
| トリガソケット(別売) (*4) | E10977 | E10978 | E10977 | E10978 | E10977 | E10978 | E10977 | E10978 | － | |
NOTE:
*1: 高い安定性で動作させるために、ランプ発光繰り返し周波数は10 Hz以上を推奨します。
*2: 光出力安定性(ランプ発光繰り返し周波数が10 Hz以上の場合)
光出力安定性(％ CV) ＝ 光出力標準偏差 / 平均光出力 × 100
光出力安定性(％ p-p) ＝ (最大光出力 - 最小光出力) / 平均光出力 × 100
*3: 弊社製Siフォトダイオード S1336-8BQ にて測定した値です。
寿命の定義は20 W(0.5 J ～ 0.02 J)動作で、190 nm ～ 1100 nmでの光出力が初期値の50 ％に低下した時点、または光出力安定性が仕様のMax.の値を超えた時点としています。
*4：トリガソケットについては、オプションを参照ください。
動作条件例
| 主放電 コンデンサ容量 (μF) |
主放電電圧 (V) |
最大ランプ 入力エネルギー(1フラッシュ) (*5) (mJ) |
最大ランプ発光繰り返し周波数 (*6) (Hz) |
最大平均ランプ入力 (連続) (*7) (W) |
専用電源 (別売) (*8) |
|---|---|---|---|---|---|
| 1.0 | 1000 | 500 | 40 | 20 | C13316-10 |
| 700 | 245 | 82 | 20 | ||
| 0.4 | 1000 | 200 | 100 | 20 | C13316-04 |
| 700 | 98 | 204 | 20 | ||
| 0.3 | 1000 | 150 | 133 | 20 | C13316-03 |
| 700 | 74 | 272 | 20 | ||
| 0.2 | 1000 | 100 | 200 | 20 | C13316-02 |
| 700 | 49 | 408 | 20 | ||
| 0.1 | 1000 | 50 | 400 | 20 | C13315 |
| 700 | 25 | 816 | 20 |
NOTE:
*5: 最大ランプ入力エネルギー( 1フラッシュ)(J)
E ＝ 1/2 × C × V2 C：主放電コンデンサ容量(F)、V：主放電電圧(V)
*6: 高い安定性で動作させるために、ランプ発光繰り返し周波数は10 Hz以上を推奨します。
*7: 最大平均ランプ入力( 連続)(W)
P ＝ E × f E：最大ランプ入力エネルギー(1フラッシュ)(J)、f：ランプ発光繰り返し周波数(Hz)
*8: 専用電源については、オプションを参照ください。
ラインアップ
オプション
トリガソケット E10977 , E10978

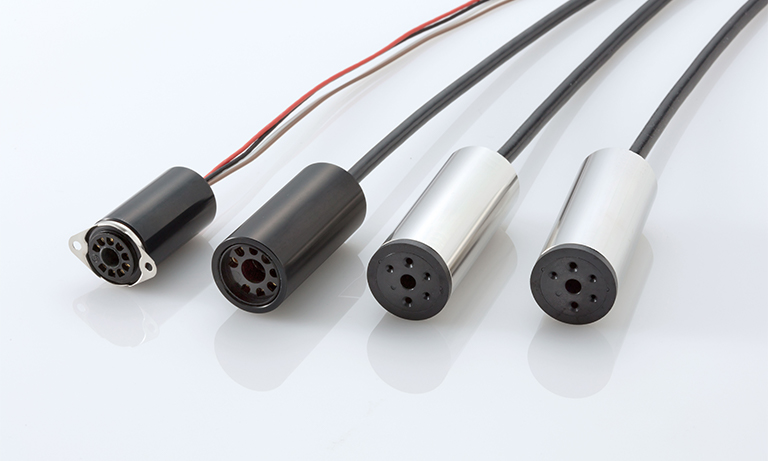

キセノンフラッシュランプ専用のトリガソケットです。高電圧トランス、分圧抵抗、コンデンサを一体化したもので、回路設計や装置設計の煩わしさを低減します。
専用電源 C13315 / C13316シリーズ

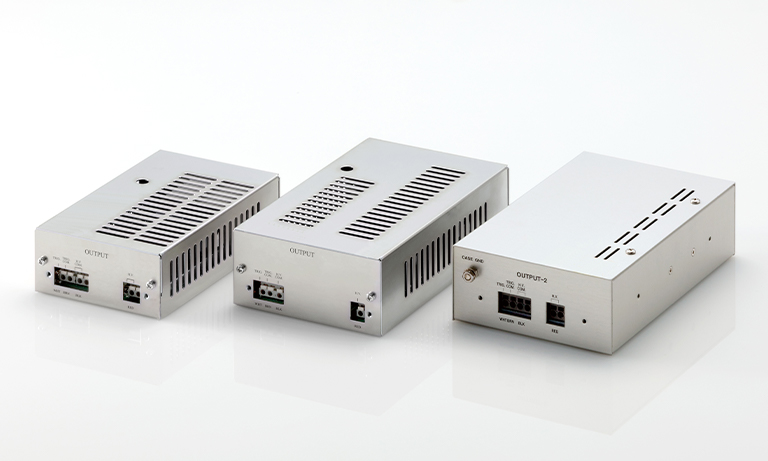

キセノンフラッシュランプの性能を引き出す専用電源です。スイッチング方式の採用に加えて、高速充電回路と放電停止回路を内蔵したことにより、小型・大容量でありながら、キセノンフラッシュランプを高安定に点灯させます。
