関連製品 | HPD（ハイブリッド・フォトディテクタ）
アンプ

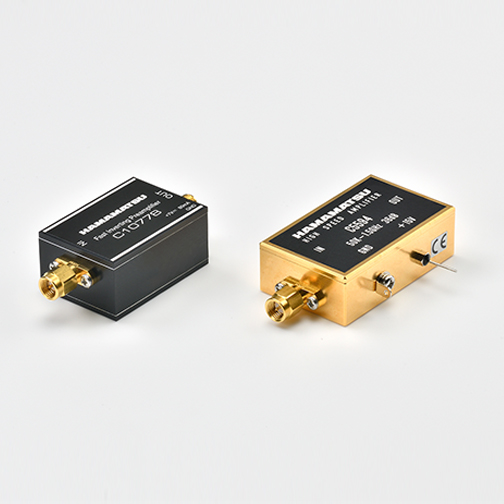

左：C10778、右：C5594-12
| 項目 | C10778 | C5594-12 | 単位 | |
|---|---|---|---|---|
| タイプ | 反転 | 非反転 | ― | |
| 周波数帯域 | 350 kHz to 1.5 GHz*1 | 50 kHz to 1.5 GHz*2 | ― | |
| ゲイン | Min. | 34*3 | 34*4 | dB |
| Typ. | 37*3 | 36*4 | dB | |
| 入力/出力インピーダンス | 50 | 50 | Ω | |
| 入力電圧 | +7 to +12 | +12 to +16 | V dc | |
*1 カットオフ周波数は、ゲインが350 kHz ～ 1.5 GHz間の平均ゲインより3 dB落ちる周波数として定義しています。
*2 カットオフ周波数は、ゲインが0.1 GHzの時に3 dB落ちる周波数として定義しています。
*3 周波数範囲：350 kHz ～ 1.5 GHz
*4 周波数：0.1 GHz
高圧電源

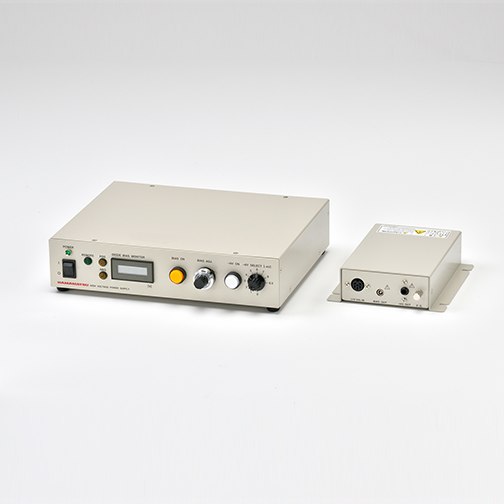

左：C12929、右：C13265
| 項目 | C12929 | C13265 | 単位 | ||
|---|---|---|---|---|---|
| 入力電圧 | 100 V AC ～ 240 V AC | ±15 V dc | ― | ||
| ゲイン | バイアス | 電圧範囲 | 0 ～ ±500 | 0 ～ +500 | V |
| 最大出力電流 | 500 | μA | |||
| H.V. | 電圧範囲 | 0 ～ -8.5 | kV | ||
| 最大出力電流 | 16 | 2 | μA | ||
