フォトンカウンティングヘッド
H10682-01
H10682シリーズは、メタルパッケージ光電子増倍管と高速フォトンカウンティング回路、高圧電源を内蔵した小型フォトンカウンティングヘッドです。+5 Vを入力するだけでフォトンカウンティング計測が行えます。従来品の約2/3以下の大きさに抑え、過大光をモニタする機能も追加されました。従来のバイアルカリ光電面より高感度のスーパーバイアルカリ光電面、さらに高感度なウルトラバイアルカリ光電面、近赤外領域まで感度を有するマルチアルカリ光電面の3製品を用意しています。
仕様
| 受光面形状 | 円形 |
|---|---|
| 受光面サイズ | φ8 mm |
| 感度波長 (Short) | 230 nm |
| 感度波長 (Long) | 870 nm |
| 感度波長 (Peak) | 400 nm |
| 外形寸法 (W x H x D) | 22.0 mm x 36.0 mm x 40.0 mm |
| 入力電圧 | +4.75 V ～ +5.25 V |
| 最大入力電圧 | 6 V |
| 最大入力電流 | 40 mA |
| 計数感度 at 300 nm Typ. | 2.7 x 105 s-1・pW-1 |
| 計数感度 at 400 nm Typ. | 3.6 x 105 s-1・pW-1 |
| 計数感度 at 500 nm Typ. | 2.8 x 105 s-1・pW-1 |
| 計数感度 at 600 nm Typ. | 2.0 x 105 s-1・pW-1 |
| 計数感度 at 700 nm Typ. | 1.2 x 105 s-1・pW-1 |
| 計数感度 at 800 nm Typ. | 3.0 x 104 s-1・pW-1 |
| カウントリニアリティ | 5.0 x 106 s-1 |
| ダークカウント Typ. | 600 s-1 |
| ダークカウント Max. | 1000 s-1 |
| パルスペア分解能 | 20 ns |
| 出力パルス幅 | 10 ns |
| 出力パルス波高 Min. | 2 V |
| 出力パルス波高 Typ. | 2.2 V |
| 推奨負荷抵抗 | 50 Ω |
| 信号出力論理 | 正論理 |
| 動作周囲温度 | +5 ℃ ～ +40 ℃ |
| 保存温度 | -20 ℃ ～ +50 ℃ |
| 質量 | 47 g |

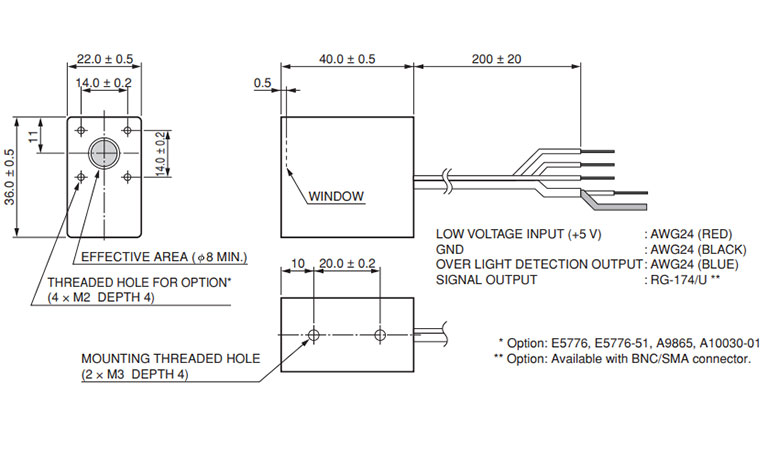

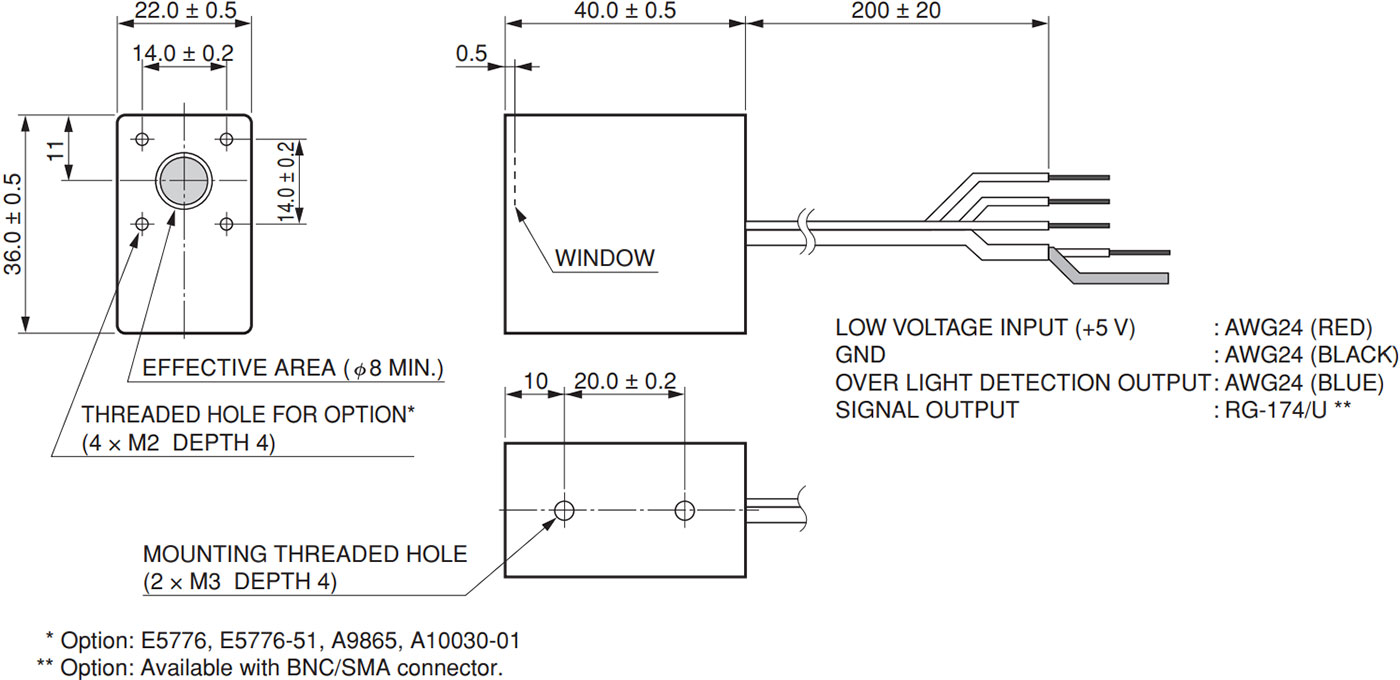

外形寸法図 (単位: mm)
