InGaAs camera
C16741-40U
The C16741-40U is an InGaAs camera with sensitivity in the visible to near infrared region from 400 nm to 1700 nm.
It has a USB 3.1 Gen 1 interface port which supports 12 bit image acquisition and exposure time adjustment. This makes the C16741-40U ideal for use in a wide range of applications including internal inspection of silicon wafers and devices, laser beam alignment and evaluation of solar cells.
Features
- High sensitivity in the visible to near infrared region
- 1280 pixels × 1024 pixels
- Low noise and high stability with cooling
- Frame rate of 71.53 frames/s
Applications
- Internal inspections of silicon wafers and devices
- Evaluation of solar cells
- Evaluation and analysis of optical communication devices
- EL/PL image acquisition
Software
Our software provides the interface to access all of our carefully engineered camera features, from simply setting exposure to orchestrating complex triggering for multidimensional experiments.
Specifications
| Type number | C16741-40U |
|---|---|
| Imaging device | InGaAs sensor |
| Effective no. of pixels | 1280 (H) × 1024 (V) |
| Cell size | 5 μm (H) × 5 μm (V) |
| Effective area | 6.40 mm (H) × 5.12 mm (V) |
| Readout speed | 71.53 frames/s |
| Exposure time | 20.46 μs to 1 s (13.09 μs step) |
| Cooling method | Peltier cooling |
| Cooling temperature | +15 ˚C ±0.5 ˚C (Forced-air cooled , Ambient temperature: +25 ˚C ±3 ˚C) , +20 ˚C ±0.5 ˚C (Natural-air cooled , Ambient temperature: +25 ˚C ±3 ˚C) |
| External trigger mode | Edge trigger, level trigger, start trigger |
| External trigger signal routing | SMA |
| Trigger delay function | 0 μs to 10 s (1 μs step) |
| Image processing functions | Background subtraction, Shading correction |
| Interface | USB3.1 Gen 1 |
| Connector | USB Type-C |
| A/D converter | 12 bit / 8 bit |
| Lens mount | C-mount |
| Power supply | DC +12 V |
| Power consumption | Approx. 15 W |
| Ambient operating temperature | 0 ˚C to +35 ˚C |
| Ambient storage temperature | -10 ℃ to ＋50 ℃ |
| Ambient operating humidity | 30 % to 80 % (with no condensation) |
| Ambient storage humidity | 90 % max. (with no condensation) |

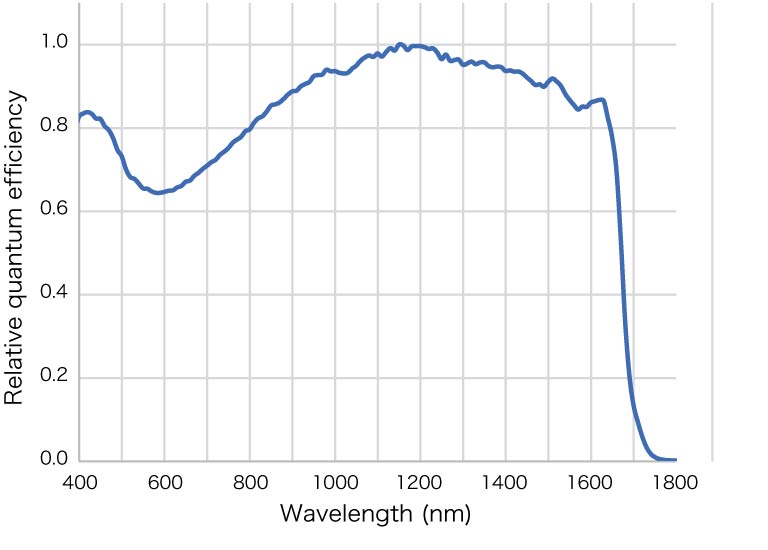

Spectral response

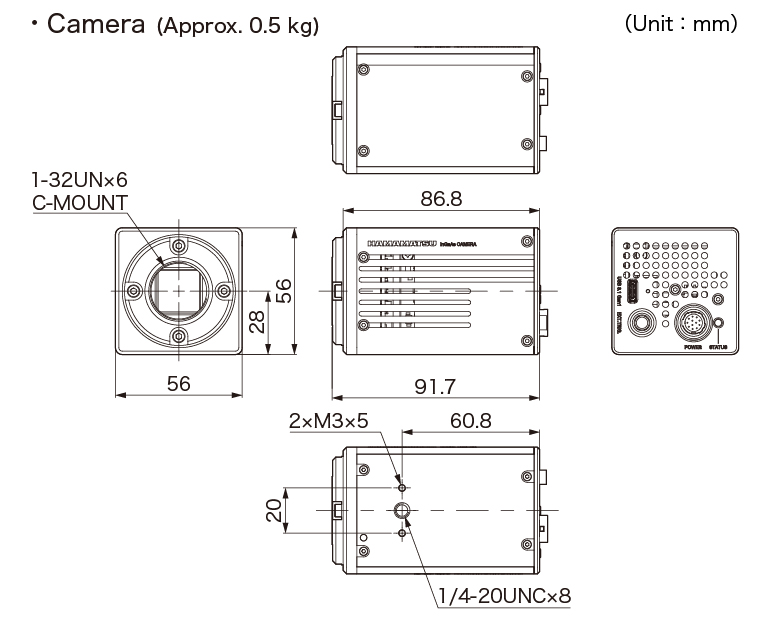

Dimensions
