Microfocus X-ray source

L12721

Open type microfocus x-ray source using the reflection target. High voltage power supply is integrated. High power operation at 300 kV is available.

Tube voltage : 20 kV to 300 kV, Maximum output : 200 W, Minimum resolution : 4 um, Short FOD : 5 mm, X-ray beam angle : 40 degrees to 60 degrees, Communication method : RS-232C

Features

  • High power:300 kV
  • High stability
  • No high voltage cable connection required
  • Easy to replace Cathode
  • Easy operation

Specifications

Tube Voltage 300 kV
Type Open type
Tube Voltage Operational Range 20 kV to 300 kV
Maximum Output 200 W
X-ray Focal Spot Size Minimum resolution 4 μm
X-ray Beam Angle (Coned) 40 degree to 60 degree
Focus to Object Distance (FOD) 5 mm

Dimensional outlines (Unit mm)

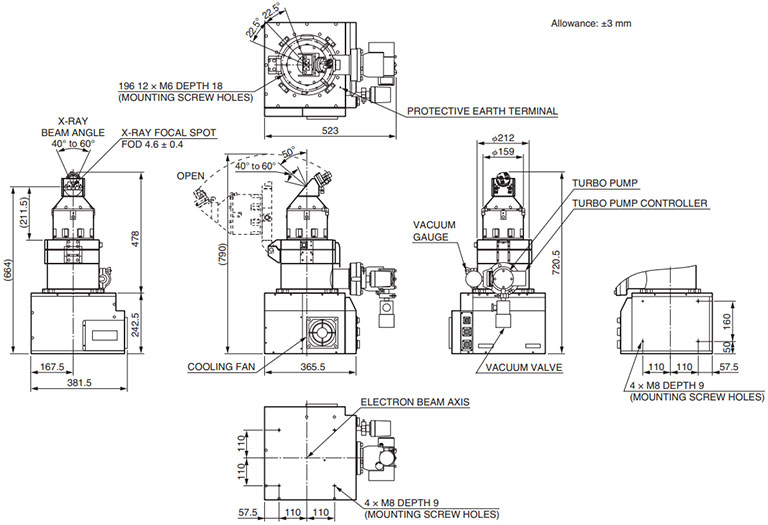

X-RAY TUBE UNIT L12722

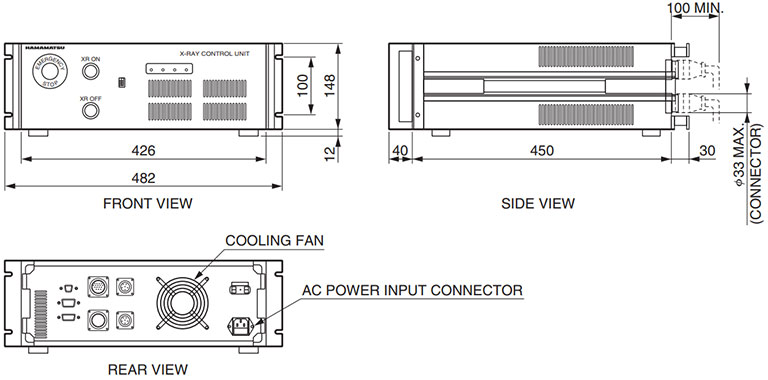

X-RAY CONTROL UNIT C12723
