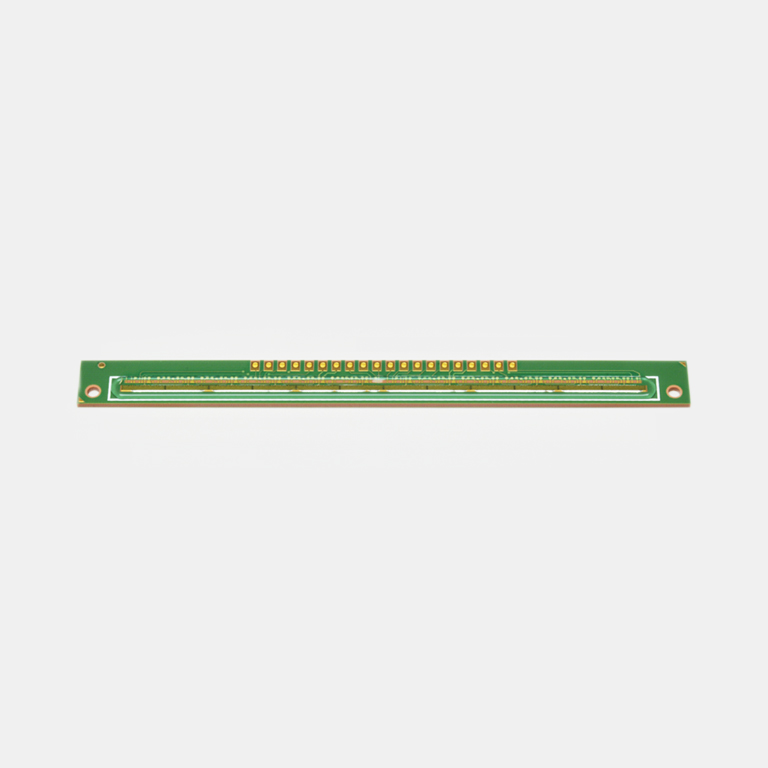

CMOS linear image sensor

S14417-02

200 dpi sensor with a wide dynamic range

The S14417 series are low current consumption CMOS linear image sensors with a 10 MHz video data rate. The pixel size is 127 × 127 μm.




Features
-Pixel size: 127 × 127 μm
-128 pixels
-High-speed data rate: 10 MHz max.
-Single 3 V or 5 V supply voltage operation
-Built-in timing generator; requires only a start pulse and clock pulse for operation
-Low current consumption
-Simultaneous integration capable

Type High-speed readout type
Image size 16.189 × 0.127 mm
Number of effective pixels 128 x 1 pixels
Pixel size 127 x 127 μm
Spectral response range 400 to 1000 nm
Line rate (max.) 67567 lines/s
Cooling Non-cooled
Window material Broslicate glass
Package Ceramic
