Color sensor
S9706
12-bit digital output
The S9706 is a digital color sensor sensitive to red (λ=615 nm), green (λ=540 nm)、blue(λ=465 nm) regions of the spectrum. Detected signals are serially output as 12-bit digital data. Built-in three 12-bit registers allow simultaneous measurement of RGB three colors. Sensitivity level is adjustable in two steps to cover a wide photometric range.
Features
-12-bit digital output
-Simultaneous measurement of RGB three colors
-2-step sensitivity switching (sensitivity ratio of 1:9)
-Low voltage (3.3V) operation
-CMOS monolithic photo IC
-No external components required
| Product type | RGB digital color sensor |
|---|---|
| Package material | Plastic |
| Package type | Surface mount type |
| Package size | 4.0 × 4.7 × 2.6 mm |
| Photosensitive area | 1.2 × 1.2 mm |
| Spectral response range (Blue) | 400 to 540 nm |
| Spectral response range (Green) | 480 to 600 nm |
| Spectral response range (Red) | 590 to 720 nm |
| Peak sensitivity wavelength (Blue) | 465 nm |
| Peak sensitivity wavelength (Green) | 540 nm |
| Peak sensitivity wavelength (Red) | 615 nm |
| Photosensitivity Low range (Blue) | 0.21 LSB/lx |
| Photosensitivity Low range (Green) | 0.45 LSB/lx |
| Photosensitivity Low range (Red) | 0.64 LSB/lx |
| Photosensitivity High range (Blue) | 1.9 LSB/lx |
| Photosensitivity High range (Green) | 4.1 LSB/lx |
| Photosensitivity High range (Red) | 5.8 LSB/lx |
| Operating temperature | -25 to +85 deg.C |
| Storage temperature | -20 to +85 deg.C |
| Measurement condition | Typ. Ta=25 deg.C, Vdd=5 V, Tg=100 ms, A light source, unless otherwise noted |

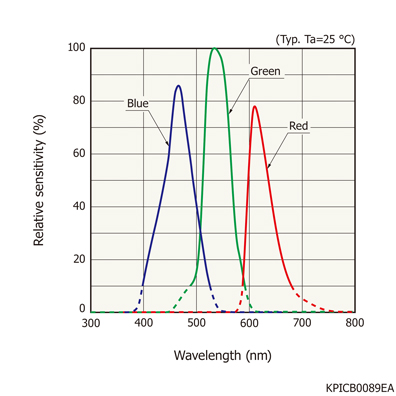

Spectral response
