Photomultiplier tube module

H14600-01

The H14600-01 is photomultiplier tube modules containing a metal package PMT and a high-voltage power supply circuit. Despite the size nearly equal to photodiodes, this PMT delivers high gain, wide dynamic range, and highspeed response.

H14600 series : Pin output type
H14601 series : Cable output type

Photocathode Area Shape Round
Photocathode Area Size Dia.8 mm
Wavelength (Short) 300 nm
Wavelength (Long) 870 nm
Wavelength (Peak) 400 nm
Dimension (W x H x D) 22.0 mm x 25.0 mm x 22.0 mm
Input Voltage +4.5 V to +5.5 V
Max. Input Voltage 5.5 V
Max. Input Current 3.5 mA
Max. Average Output Signal Current 100 μA
Max. Control Voltage +1.0 V (Input impedance 1 MΩ)
Recommended Control Voltage Adjustment Range +0.5 V to +1.0 V (Input impedance 1 MΩ)
[Cathode] Luminous Sensitivity Min. 100 μA/lm
[Cathode] Luminous Sensitivity Typ. 200 μA/lm
[Cathode] Red/White Ratio Typ. 0.25
[Cathode] Radiant Sensitivity Typ. 77 mA/W
[Anode] Luminous Sensitivity Min 40 A/lm
[Anode] Luminous Sensitivity Typ. 200 A/lm
[Anode] Radiant Sensitivity Typ. 7.7 x 104 A/W
[Anode] Dark Current (after 30min.) Typ. 1 nA
[Anode] Dark Current (after 30min.) Max. 10 nA
[Time Response] Rise Time Typ. 0.6 ns
Ripple Noise (peak to peak) Max. 0.2 mV
Settling Time Max. 10 s
Operating Ambient Temperature +5 ℃ to +50 ℃
Storage Temperature -20 ℃ to +50 ℃
Weight 32 g

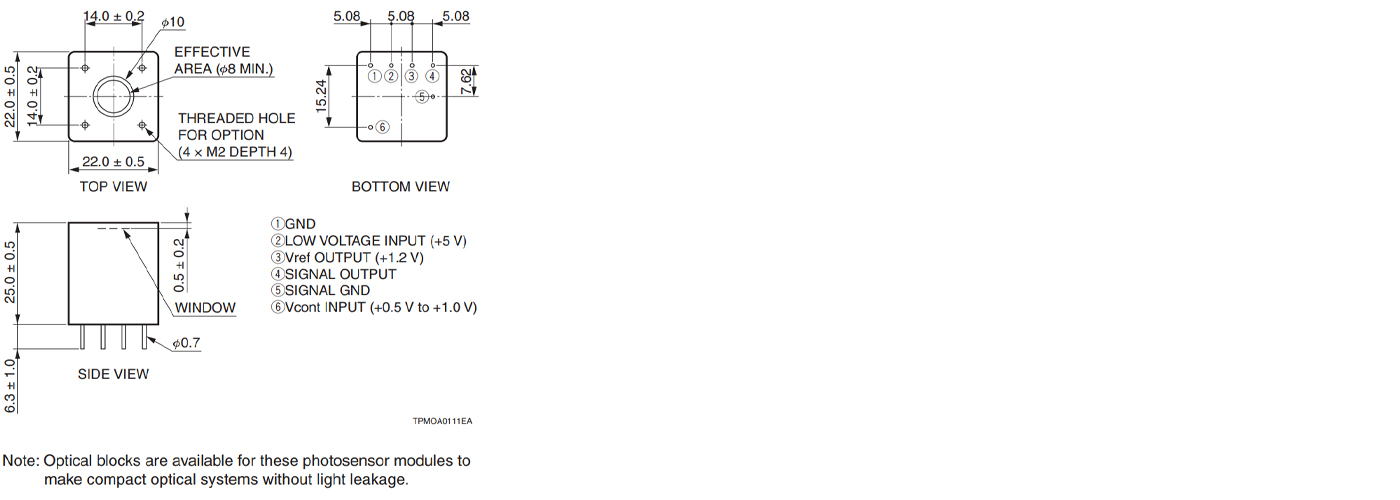

Dimensional outline (Unit mm)
