Photomultiplier tube module

H16200-50

These photomultiplier tube modules use a GaAs photocathode photomultiplier tube. These achieve a wide dynamic range with a maximum output current of 40 μA, providing clear images with sharp contrast and also ensuring stable operation without needing a protection circuit.

Specifications

Parameter Description / Value Unit
Input voltage +11.5 to +15.5 V
Max. input voltage +18 V
Max. input current *1 12 mA
Max. output signal current 40 μA
Max. control voltage *2 +0.9 (Input impedance 30 kΩ) V
Recommended control voltage adjustment range *2 +0.5 to +0.8 V
Effective area Dia.5 mm
Spectral response 380 to 900 nm
Peak quantum efficiency wavelength 630 nm
[Cathode] Quantum efficiency at peak quantum efficiency wavelength Min. 14 %
Typ. 19 %
[Cathode] Radiant sensitivity at peak quantum efficiency wavelength Min. 70 mA/W
Typ. 95 mA/W
[Anode] Radiant sensitivity at peak quantum efficiency wavelength Min. 4.2 × 104 A/W
Typ. 9.5 × 104 A/W
[Anode] Dark current *3 *4 Typ. 4 nA
Max. 12 nA
 [Anode] Gain *3 Typ. 1.0 × 106 -
Rise time *3 Typ. 1.0 ns
Ripple noise (peak to peak) *3 *5 Max. 0.6 mV
Settling time *6 Max. 0.2 s
Operating ambient temperature *7 +5 to +35 °C
Storage temperature *7 -20 to +50 °C
Weight 76 g

Notes
*1 Input voltage = +15 V, Control voltage = +0.8 V
*2 Input impedance = 30 kΩ
*3 Control voltage = +0.8 V
*4 After 30 minutes storage in darkness
*5 Load resistance = 1 MΩ, Load capacitance = 22 pF
*6 The time required for the output to reach a stable level following a change in the control voltage from +0.8 V to +0.5 V.
*7 No condensation

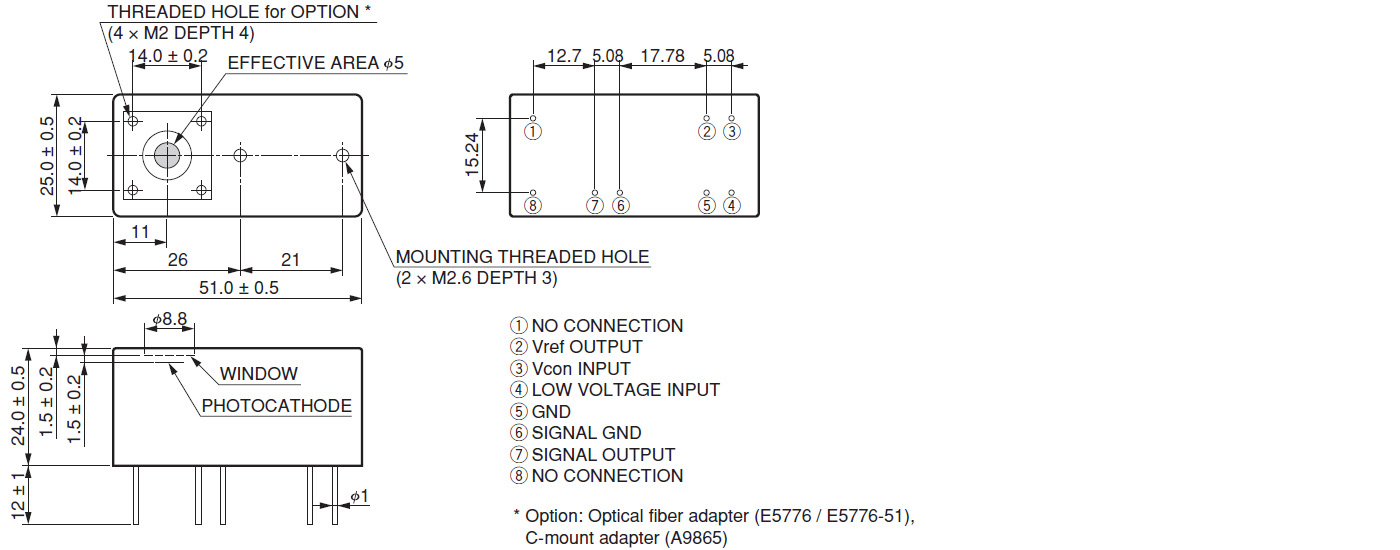

Dimensional outline (unit: mm)
