Spectrum detector PMT module
H15441-20
H15441-20 are comprised of a 6 ch multianode type photomultiplier tube, a high-voltage power supply circuit, and a optics module.
Features
- 6-color measurement with one PMT module
- High efficiency filter optics
- Palm size

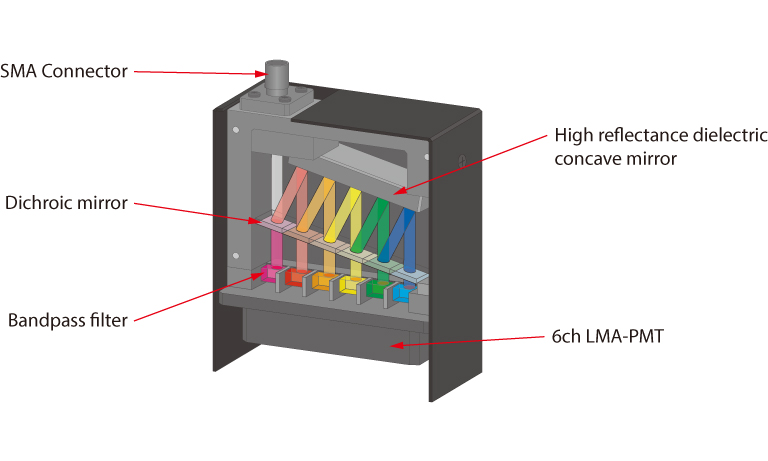

Internal structure
Characteristics

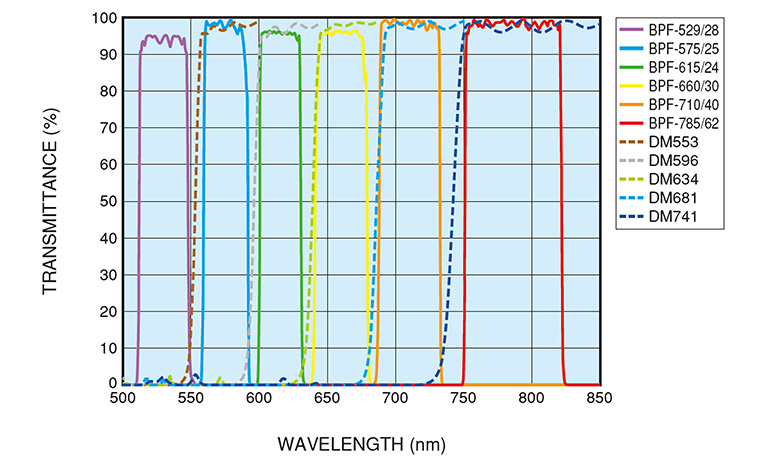

Standard bandpass filters and dichroic mirrors
| Parameter | H15441-20 | Unit | |
|---|---|---|---|
| Filter center wavelength/width(FWHM) | CH1 | 785(62) | mm |
| CH2 | 710(40) | ||
| CH3 | 660(30) | ||
| CH4 | 615(24) | ||
| CH5 | 575(25) | ||
| CH6 | 529(28) | ||
Besides the above standard setup of the optical system, we have a variety of bandpass filters and dichroic mirrors available in stock.
Select the desired bandpass filters and dichroic mirrors needed to configure a PMT module with the optical assembly most ideal for your application. Moreover, if you provide us with your band pass filters, we can use it to configure an optical system that matches your request. Please consult us for details.
Specifications
| Parameter | Value | Unit | |||
|---|---|---|---|---|---|
| Maximum ratings | Input voltage | HVPS | +5.5 | V | |
| AMP | ±5.5 | ||||
| -HV control voltage | +0.9 | V | |||
| Individual gain adjustment voltage | +4.2 | V | |||
| Output signal voltage | DC output / ch | +0.5 | V | ||
| Pulse output / ch | +3.0 | ||||
| Operating ambient temperature | +5 to +50 | ℃ | |||
| Storage temperature | -20 to +50 | ℃ | |||
| General specifications | Input voltage range | HVPS | +4.5 to +5.5 | V | |
| AMP | ±4.5 to ±5.5 | V | |||
| Recommended -HV control voltage range | +0.5 to +0.8 | V | |||
| Individual gain adjustment voltage range | 0 to +4.0 | V | |||
| Gain adjustment range | 1 to 0.01 | /ch | |||
| Reference voltage output | -HV control | +1.25 | V | ||
| Individual gain adjustment | +4.5 | ||||
| Overall dimensions | 104 x 78 x 30 | mm | |||
| Weight | Typ. | 281 | g | ||
| Photomultiplier tube specifications | Wavelength range | 300 to 920 | nm | ||
| Peak sensitivity wavelength | 630 | nm | |||
| Cathode luminous sensitivity | Typ. | 500 | µA/lm | ||
| Anode luminous sensitivity | Typ. | 500 | A/lm | ||
| Anode dark current/ch | Typ. | 5 | nA | ||
| Gain | Typ. | 1 x 106 | ― | ||
| Module / Amp specifications | Supply current | HVPS | +80 | mA | |
| AMP | ±30 | ||||
| Frequency bandwidth | Min. | DC to 1 MHz | ― | ||
| Current-to-voltage conversion factor | 0.02 | V/µA | |||
| Gain temperature drift | Typ. | 0.5 | %/℃ | ||
| Ripple noise(p-p) | Max. | 1 | mV | ||
| Offset voltage | Max. | ±3 | mV | ||

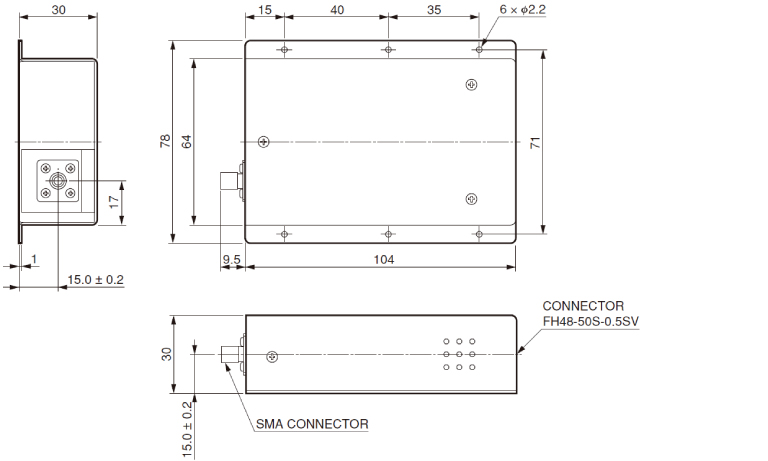

Dimensional outline
Unit: mm

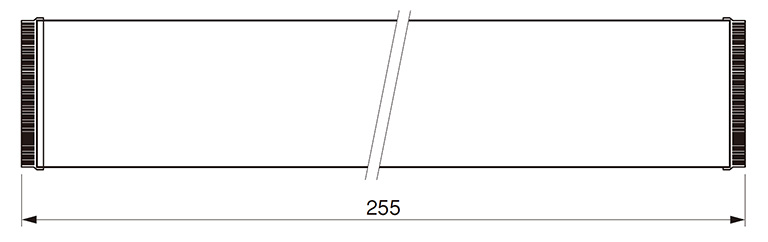

Flexible flat cable (Supplied)
