CMOS linear image sensor
S15611W
40 MHz operation, digital output, compact and thin package

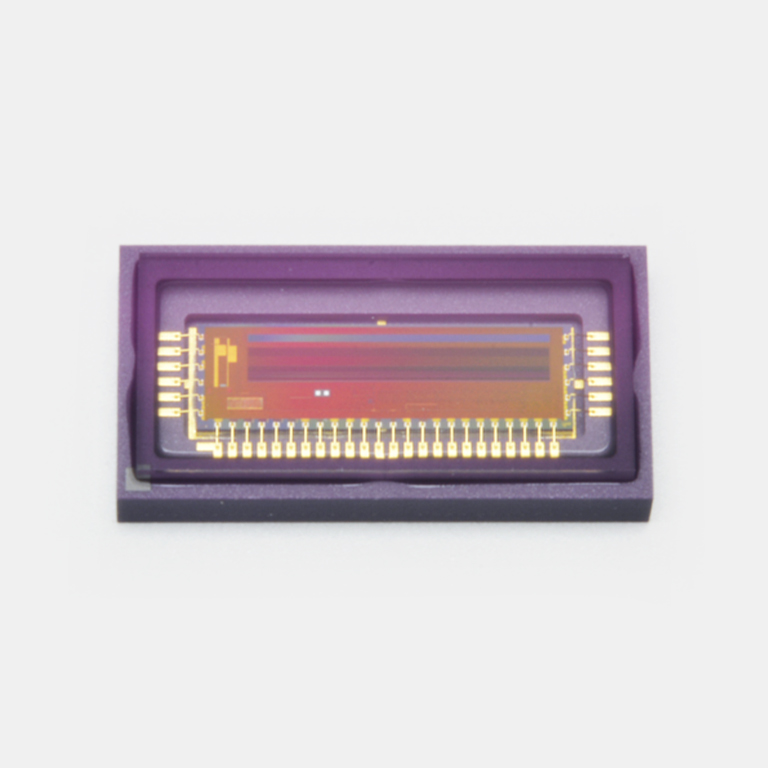

The S15611 is a CMOS linear image sensor that has achieved a readout speed of 40 MHz max. and a line rate of 34 kHz max. The image sensor has a timing generator, bias generator, 12-bit A/D converter, and is easy to handle because of its digital I/O. The S15611W employs a CSP (chip size package) structure, enabling a compact and thin design.
Features
-Pixel size: 7 × 200 μm
-Number of pixels: 1024
-Effective photosensitive area length: 7.168 mm
-High-speed readout: 40 MHz max.
-Simultaneous integration of all pixels
- With variable integration time function
(electronic shutter function)
-Single 3.3 V supply voltage operation
-SPI communication function
(partial readout, offset adjustment)
-Built-in 12-bit A/D converter
| Type | High-speed readout type |
|---|---|
| Image size | 7.168 x 0.2 mm |
| Number of effective pixels | 1024 x 1 pixels |
| Pixel size | 7 x 200 μm |
| Spectral response range | 400 to 1000 nm |
| Line rate (max.) | 34000 lines/s |
| Cooling | Non-cooled |
| Window material | Broslicate glass |
| Package | Borosilicate glass + Si substrate |
| Measurement condition | Line rate: When all pixels (1024 pixels) are read out |
Spectral response
Dimensional outline (unit: mm)
