Photomultiplier tube assembly
H17001-01
H17001-01 is the multialkali photocathode photomultiplier tube assembly that incorporates a metal package PMT, divider circuit and amplifier. The H17001-01 has an effective area of Φ8 mm and a spectral response range of 230 nm to 870 nm.

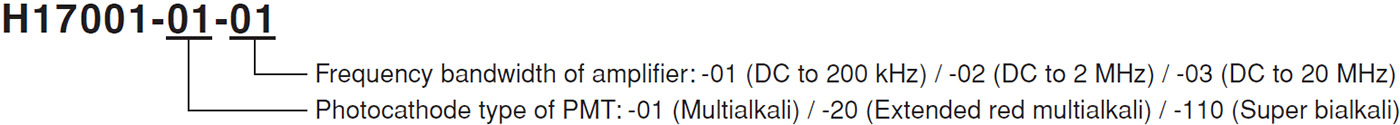

Guide of Type No.
Specifications
Built-in PMT / voltage-divider circuit / general
| Assembly Size | Dia.17.5 mm |
|---|---|
| PMT Tube Size | 16 mm |
| Built-in PMT Type No. | R9880-01 |
| Photocathode Area Shape | Round |
| Photocathode Area Size | Dia.8 mm |
| Wavelength (Short) | 230 nm |
| Wavelength (Long) | 870 nm |
| Wavelength (Peak) | 400 nm |
| Photocathode Material | Multialkali |
| Window Material | Borosilicate glass |
| Dynode Structure | Metal channel |
| Dynode Stages | 10 |
| [Cathode] Luminous Sensitivity Min. | 100 μA/lm |
| [Cathode] Luminous Sensitivity Typ. | 200 μA/lm |
| [Cathode] Red/White Ratio Typ. | 0.2 |
| [Cathode] Radiant Sensitivity Typ. | 77 mA/W |
| [Anode] Luminous Sensitivity Min. | 100 A/lm |
| [Anode] Luminous Sensitivity Typ. | 400 A/lm |
| [Anode] Gain Typ. | 2.0 x 106 |
| [Voltage Divider Circuit] Recommended Supply Voltage | -500 V to -1000 V |
| [Voltage Divider Circuit] Maximum Supply Voltage | -1100 V |
| [Voltage Divider Circuit] Total Voltage Divider Resistance | 3.46 MΩ |
| [Voltage Divider Circuit] Divider Current | 0.29 mA |
Amplifier
| Parameter | ||||
|---|---|---|---|---|
| Input Voltage | ||||
| Maximum Input Current | ||||
| Frequency Bandwidth (-3 dB) | ||||
| Current to Voltage Conversion Factor | ||||
| Offset Voltage (Max.) | ±1 *² | mV | ||
| Output Noise Voltage (Max.) *³ | 10 *⁴ / 64 *⁵ | 4.6 *⁴ / 10 *⁵ | mV | |
NOTE：*1 Load resistance = 10 kΩ *2 Load resistance = 50 Ω *3 After 30 minutes storage in darkness. *4 H17001-01/110-xx *5 H17001-20-xx

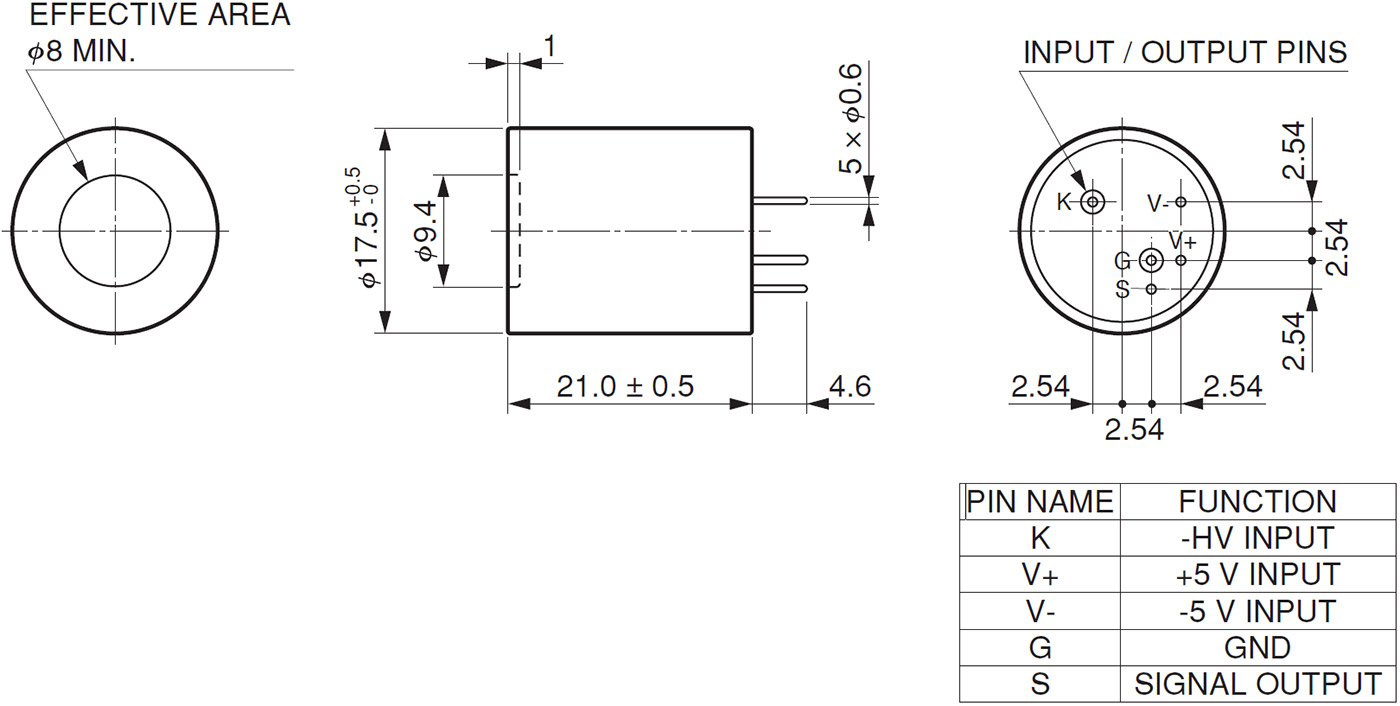

Dimensional outline (Unit: mm)
