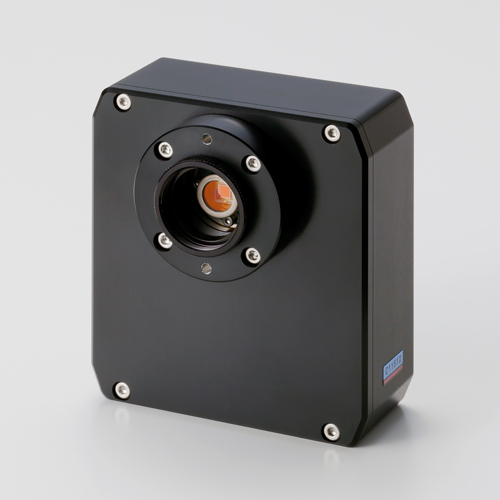

InGaAs multichannel detector head

C11512

Near infrared camera, supports CameraLink(for G11097-0606S, G12460-0606S)



The C11512 series is a multichannel detector head developed for use with an InGaAs area image sensor (G11097-0606S, G12460-0606S, G12242-0707W). This multichannel detector head contains a signal processing circuit and a temperature control circuit for image sensors. The signal processing circuit consists of an image sensor driver, an analog video signal processor (16-bit + ADC), a digital controller, an interface, and a power supply. It processes analog video signals from an image sensor and outputs them as digital signals. The CameraLink interface allows connection to a PC to make various settings, control the detector head, and acquire data.

This product comes with application software (DCam-CL) that runs on Microsoft® Windows® 10 (64-bit). It can be used to easily operate the C11512 series from the PC connected via CameraLink interface. This product also includes DLLs that the user can use to create original control programs.


Features

-Compact size
-Designed for InGaAs area image sensor: for G11097-0606S, G12460-0606S
-Supports C-mount lenses
-CameraLink interface



Output CameraLink

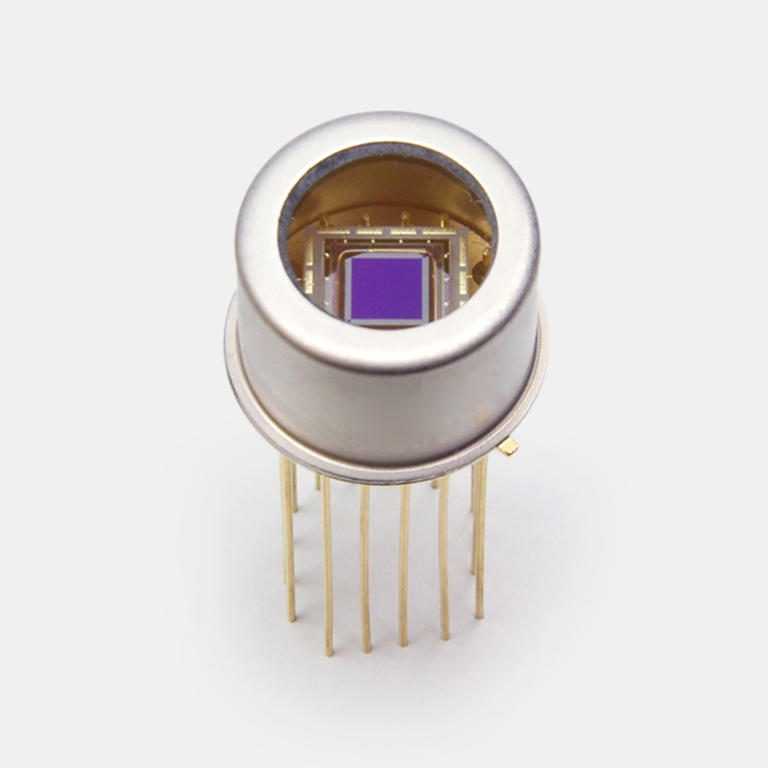

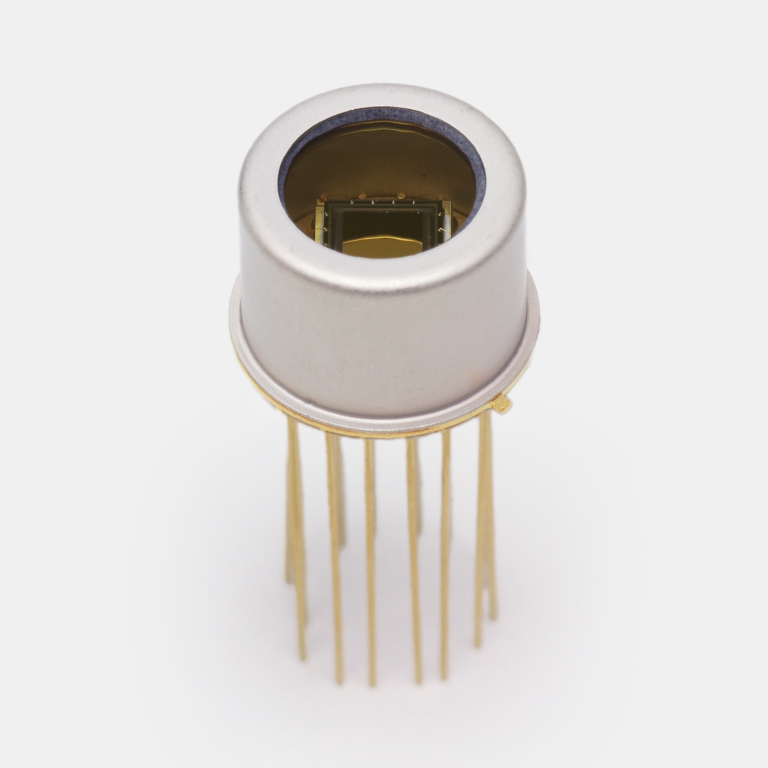

Suitable sensor G11097-0606S、G12460-0606S
Image sensor sold separately

Dimensional outline (unit: mm)
