Mini-spectrometer

C11009MA

For visible (340 to 780 nm), mini-spectrometer head (for installation into measurement equipment),Compact and low cost type

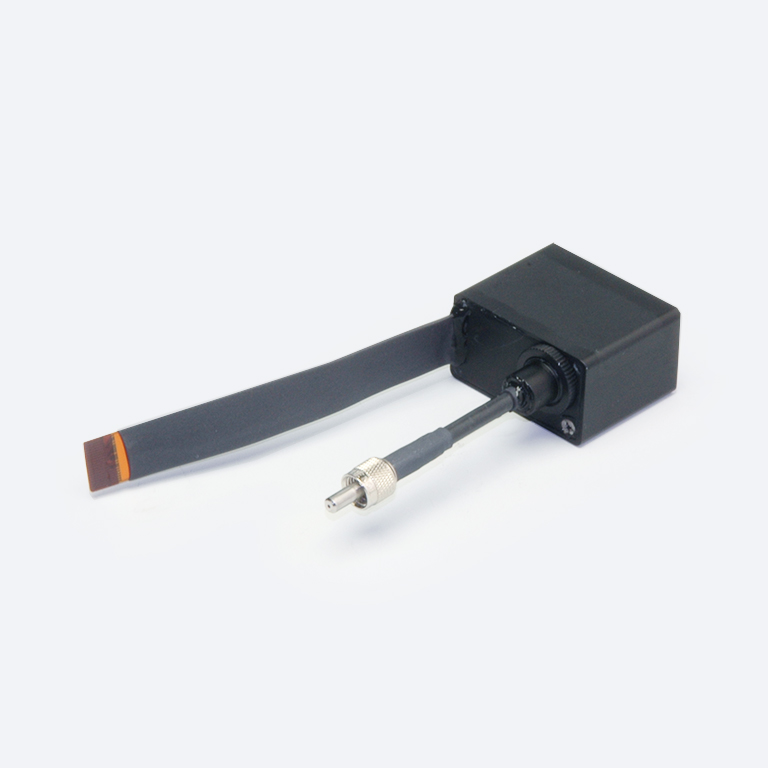

HAMAMATSU mini-spectrometer RC series is a family of compact polychromators integrated with a reflection grating and a CMOS linear image sensor. C11009MA is a mini-spectrometer head for installation into measurement equipment, which contains an optical system and an image sensor in a compact case. In mini-spectrometer heads, incident light is dispersed into a spectrum which is photoelectrically converted by the image sensor and output as video signals.


Features
- For installation into measurement equipment
- Integrating optical system and image sensor into a compact case: 28 × 28 × 28 mm
- Low cost
- Wavelength conversion factor is listed on test result sheet.



Spectral response range 340 to 780 nm
Spectral resolution (FWHM) (typ.) 6 nm
Spectral resolution (FWHM) (max.) 9 nm
Cooling Non-cooled
Interface -
Built-in sensor CMOS linear image sensor
Number of total pixels 256 pixels
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

Dimensional outline (unit: mm)
