Driver circuit for CCD image sensor

C11860

Driver circuit for CCD image sensor (S11850/S14651/S16011 series)



The C11860 is a driver circuit developed for CCD image sensor S11850/S14651/S16011 series. By connecting the C11860 to a PC through the USB 2.0 interface, you can use the PC to convert the sensor’s analog video signal into digital output and acquire the result into the PC. The C11860 consists of (1) a sensor circuit board that drives the sensor, (2) an interface circuit board that drives the sensor circuit board and performs data communication with the PC, and (3) a temperature control circuit board for controlling the sensor cooling. The sensor circuit board and interface circuit board are connected using a flexible cable. The sensor circuit board is compact, making it easy to be installed in optical systems. The interface circuit board has an external trigger I/O connector that can be used to synchronize with external devices. This product comes with application software (DcIc-USB) that runs on Microsoft® Windows® 10 (64-bit). It can be used to easily control the C11860 from the PC. The product also includes a DLL that the user can use to create original C11860 control programs.


Features
-Built-in 16-bit A/D converter
-The sensor circuit board and interface circuit board are connected using a flexible cable.
-Interface: USB 2.0
-External synchronization capable
-Single power supply: +5 VDC
-Sensor cooling control (approx. +5 °C)



Output USB 2.0

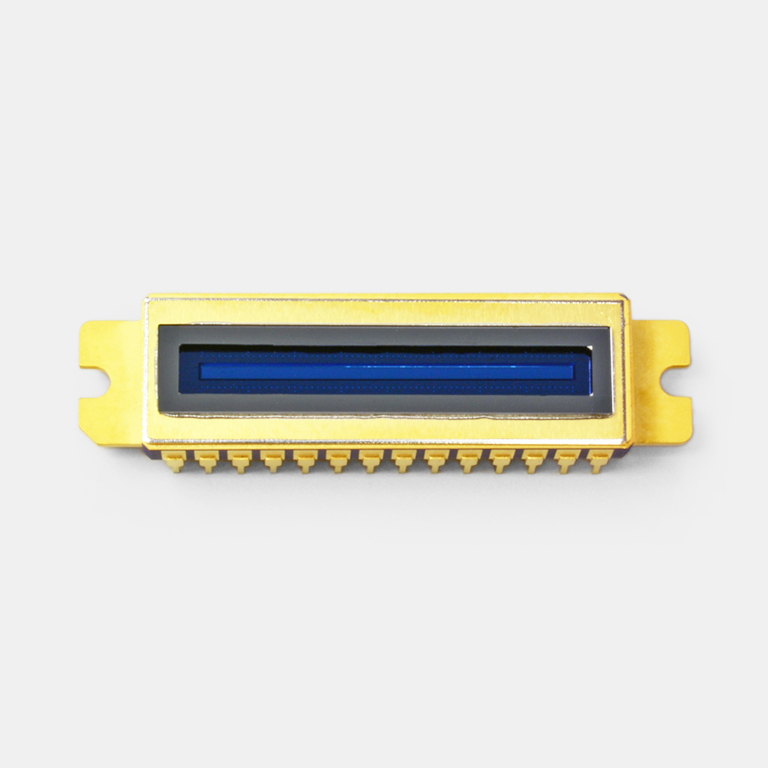

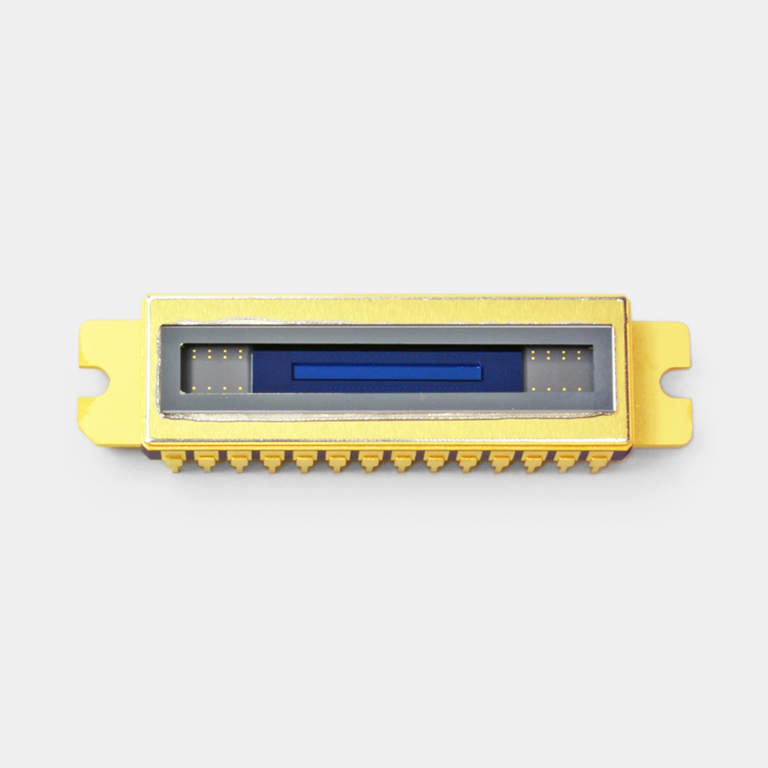

Suitable sensor S11850-1006-01, S11850-1106-01, S14651-1024, S14651-2048, S16011-1006, S16011-1106
Image sensor sold separately

Dimensional outline (unit: mm)
