High sensitivity from short wavelength to 800 nm

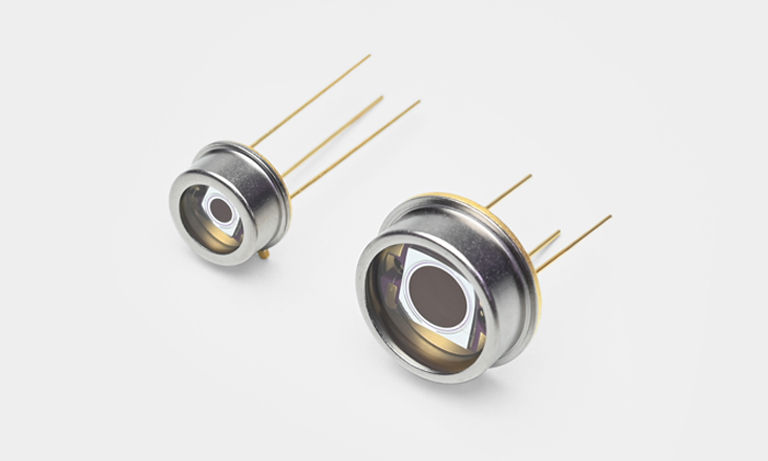

Si APD S17353 series

  • Hamamatsu Photonics K.K. Solid State Division

These APDs feature improved sensitivity across a wavelength range from short wavelengths to 800 nm. While they offer high sensitivity in the short-wavelength region, they also achieve high gain at longer wavelengths compared to conventional short-wavelength APDs (S8664 series, S12053 series), while maintaining low noise levels. This makes them suitable for applications such as very low-level light measurement and analysis instruments that require a wide wavelength range.

Features

  • High sensitivity and low noise from short wavelengths to 800 nm
  • Lineup of 6 products with different photosensitive area sizes

Applications

  • Low-light-level measurement
  • Analytical instrument

Spectral response

Gain wavelength dependence

Product lineup

Type No. Package

Photosensitive area size

(mm)

Spectral response range

Typ. (nm)

Photosensitivity

Typ. (A/W)

Dark current

Typ. (nA)

S17353-02K TO-5 Φ 0.2 320 to 1000 0.44 1
S17353-05K Φ 0.5 1.5
S17353-10K Φ 1.0 2
S17353-20K Φ 2.0 5
S17353-30K TO-8 Φ 3.0 10
S17353-50K Φ 5.0 25
