High-speed, compact near infrared spectrometer suitable for inline process

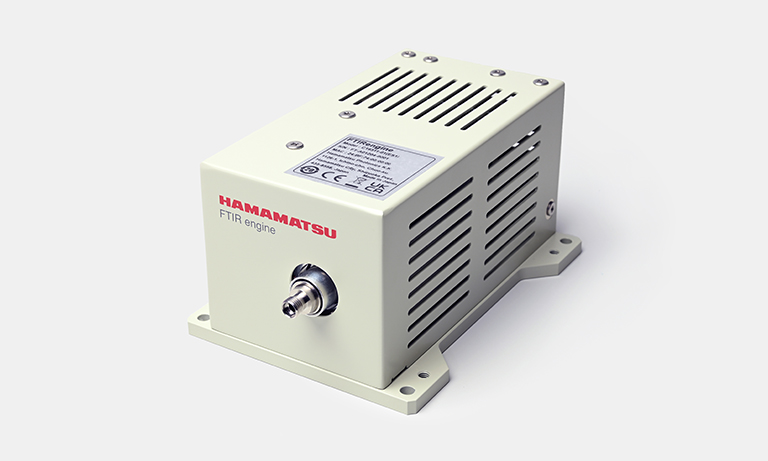

FTIR engine (FT-NIR spectrometer) C16511-01

  • Hamamatsu Photonics K.K. Solid State Division

C16511-01 is an optical fiber input type Fourier transform near infrared spectrometer with high accuracy and high speed measurement, suitable for inline process monitoring in the field.

By connecting to a PC via Ethernet, spectrum and absorbance can be measured.

Its compact size makes it easy to incorporate into existing processes, and it is suitable for measuring fluids and powders flowing through pipes and materials on conveyor belts. In addition, the wide spectral response range (1100 to 2500 nm) compared to general industrial spectrometers enables measurement of a wide variety of substances.

Features

  • Compact: 68 × 124 × 66 mm
  • High speed: 275 frames/s
  • Optical fiber input type
  • High S/N
  • Spectral response range: 1100 to 2500 nm
  • Ethernet compatible

Applications

  • FA (Factory Automation)
  • PAT (Process Analytical Technology)
  • Bioprocess analysis
  • Material inspection
  • Farm product and food inspection
  • Medicines inspection
  • Plastic sorting

For more information, please contact us
