High-speed line rate (50 klines/s) NIR image sensor

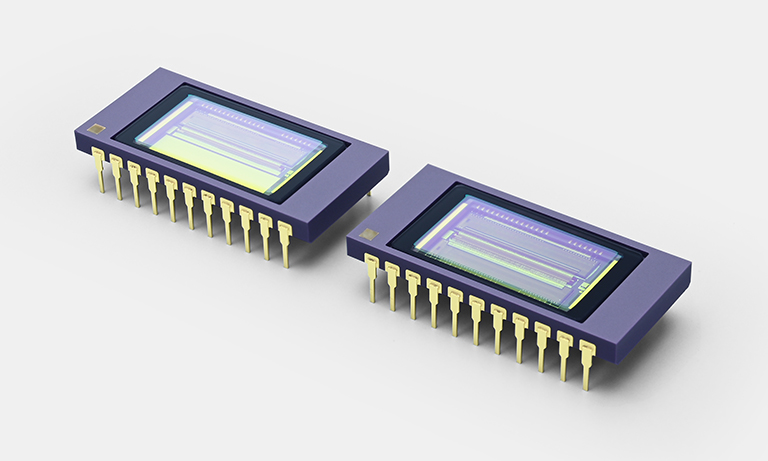

InGaAs linear image sensors G17225 series
- Hamamatsu Photonics K.K. Solid State Division
The G17225 series are InGaAs linear image sensors designed for foreign object detection.
Since the signal from each pixel is read out in charge integration mode, high sensitivity and stable operation are attained in a wide spectral range. By changing the external voltage, an approptiate value for your application is selectable from four types of conversion efficiency (CE).
Features
- High-speed line rate: 50 klines/s max.
- High-speed data rate: 20 MHz max.
- Selectable from four conversion efficiency types
- Built-in temperature sensor
- Room temperature operation
Applications
- Foreign object detection
- Farm product inspection
- SD-OCT
Spectral response
Specifications
| Type No. | G17225-512DE | G17225-1024DK | G17225-1024DG | |
|---|---|---|---|---|
| Image size (mm) | 12.8 × 0.025 | 12.8 × 0.0125 | 12.8 × 0.25 | |
| Pixel size (H × V) (μm) | 25 × 25 | 12.5 × 12.5 | 12.5 × 250 | |
| Pixel pitch (μm) | 25 | 12.5 | ||
| Number of effective pixels | 512 | 1024 | ||
| Spectral response range (typ.) (μm) | 0.9 to 1.7 | |||
| Peak sensitivity wavelength (typ.) (μm) | 1.45 | 1.55 | 1.65 | |
| Conversion efficiency (typ.) (μV/e-) | Cf=1.25 pF | 0.128 | ||
| Cf=0.13 pF | 1.23 | |||
| Cf=0.040 pF | 4.0 | |||
| Cf=0.016 pF | 10.0 | |||
