New high-speed image sensor with compact package released
CMOS linear image sensor S15611W
- Hamamatsu Photonics K.K. Solid State Division
The S15611W is a high-speed linear image sensor with a maximum line rate of 34 kHz. By adopting a wafer-level CSP (chip size package), we have achieved a smaller and thinner profile compared to previous products, enabling space-saving mounting. Another key feature is the smoother spectral response. It is suitable for applications such as encoders and position detection.
Features
- High-speed line rate: 34 kHz max.
- Compact and thin package: employing wafer-level CSP
- Smooth spectral response
- 1024 pixels
- Pixel size: 7 μm × 200 μm
Applications
- Encoders
- Position detection
Spectral response
Specifications
| Type No. | NEW S15611W | S15611 |
|---|---|---|
| Number of pixels | 1024 pixels | |
| Pixel pitch | 7 μm | |
Pixel height |
200 μm | |
| Spectral response range | 400 nm ～ 1000 nm | |
| Maximum readout speed | 40 MHz | |
| Package | Borosilicate glass + silicon substrate | Ceramic |
| Window material | Borosilicate glass | |

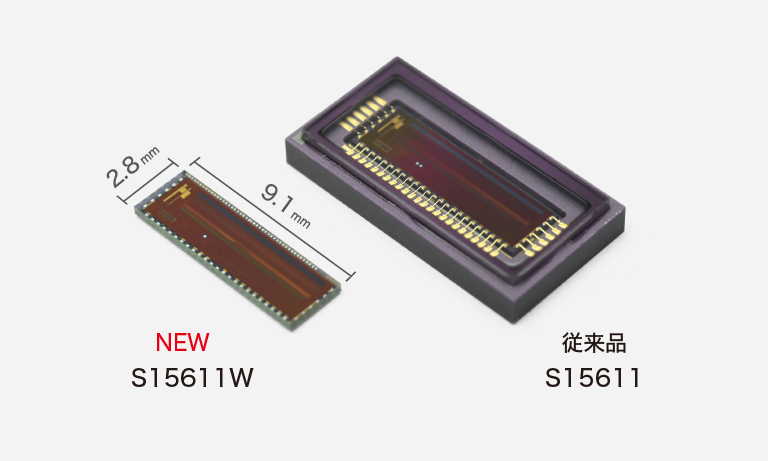

| Dimensions (W × D × H) | 9.1 mm × 2.8 mm × 0.46 mm | 12.8 mm × 6.7 mm × 2.0 mm |
