Large photosensitive area and High-sensitivity MIR detector

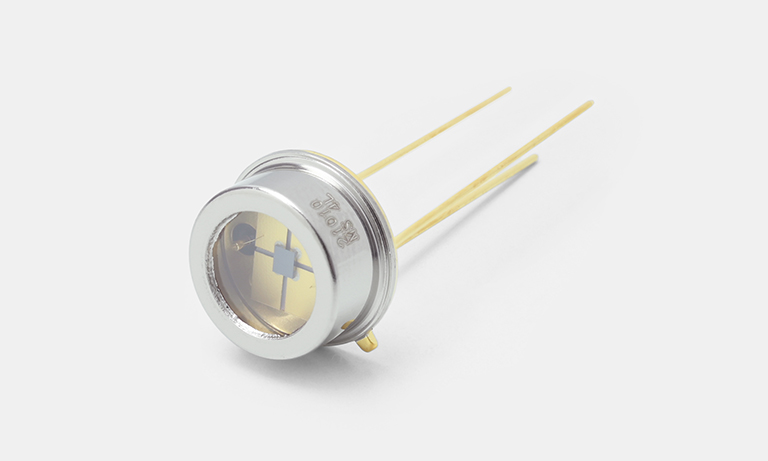

InAsSb photovoltaic detector P17442-011MS

  • Hamamatsu Photonics K.K. Solid State Division

The P17442-011MS is a mid-infrared detector for wavelengths up to 5 μm band.

While maintaining the detection performance of InAsSb photovoltaic detectors in the same wavelength band, it has a larger photosensitive area and higher sensitivity.

Its excellent responsiveness, linearity, and long-term stability make it suitable for use in combination with broadband, high-power light sources, enabling stable measurement over a long period of time.

Features

  • Large photosensitive area: 1.0 mm × 1.0 mm
  • High sensitivity: 65 mA/W
  • High-speed response: 15 ns
  • High reliability: TO-5 metal package
  • RoHS compliant (lead, mercury, cadmium free)

Applications

  • Gas detection (CH4, CO2, CO, etc.)
  • Radiation thermometers
  • Flame detection (CO2 resonance radiation)

Spectral response
