X-ray line scan camera

C12450-27FGC-G

C12450-27FGC-G is to meet the demands in the tire inspection. It offers an image of 0.4 mm pixel size × 3456 pixels resolution horizontally with no gap (<1 pixel) for whole effective area while the tire rotate one revolution.
The high sensitivity and wide intensity dynamic range provide fast and excellent detectability for reliable inspection.

Type number C12450-27FGC-G
Scintillator Gd-Scintillator
Effective X-ray tube voltage range Approx. 25 kV to 160 kV
Sensor element pitch 0.4 mm
Number of pixels 3456 (H)×1 (V)
Line speed 4 m/min to 120 m/min
A/D converter 16 bit
Digital interface Gigabit ethernet*1
Ambient operating temperature 0 ℃ to +45 ℃
Ambient storage temperature -10 ℃ to +55 ℃
Ambient operating humidity 30 % to 80 % (With no condensation)
Power supply DC+15 V
Power consumption Approx. 23 VA
*1 For digital interface other than the above specification, please contact our sales.

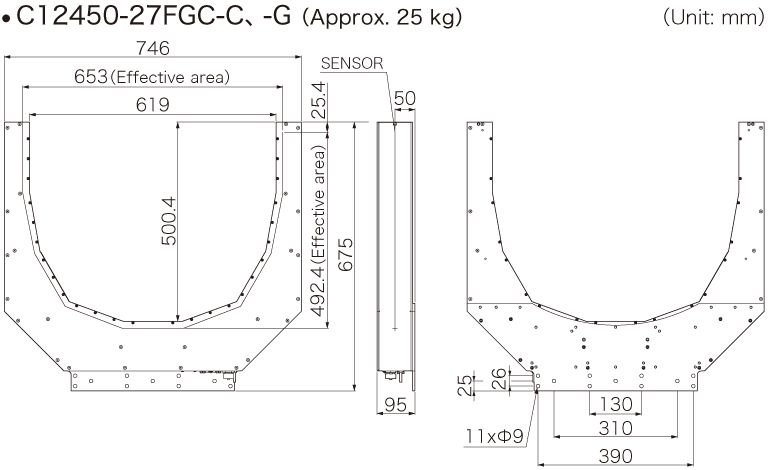

Dimensions
