X-ray TDI-CMOS camera
C17300 series
The X-ray TDI-CMOS camera is designed to achieve highly accurate in-line X-ray internal inspection. By utilizing a CMOS area sensor and summing or averaging the outputs of multiple sensor lines, it captures fast-moving objects with both high sensitivity and high resolution.
Furthermore, because it maintains a high signal-to-noise (S/N) ratio even under low-dose X-ray conditions, it can acquire clear, high-quality images while minimizing damage to the inspected object compared with conventional models.
TDI-CMOS technology
TDI is a technology for achieving high-speed, high-resolution and high-sensitivity scanning over a wide area.

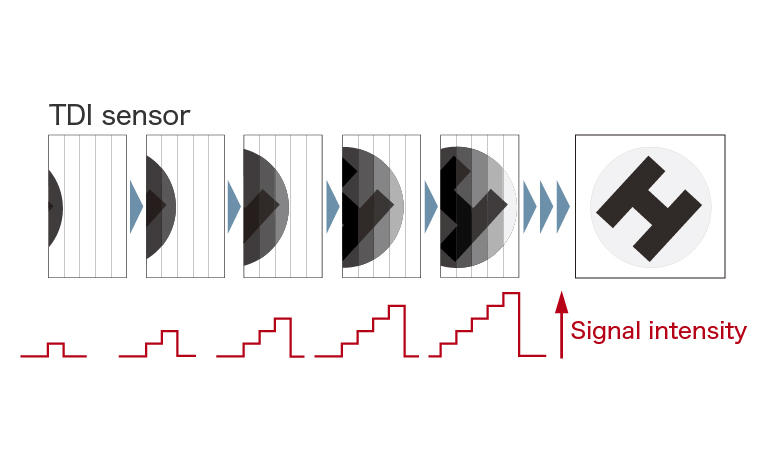

The TDI*-CMOS technology uses a CMOS area sensor to capture images of moving objects by adding/averaging the sensor output from several lines. By synchronizing the timing of data acquisition at each line of the sensor with the object’s movement to be imaged as it impinges on the sensor’s surface, the sensor can be exposed to the number of vertical steps of the sensor. This makes it possible to image moving objects at higher speeds and with higher sensitivity than conventional linear sensors.
*Abbreviation for time delay integration.

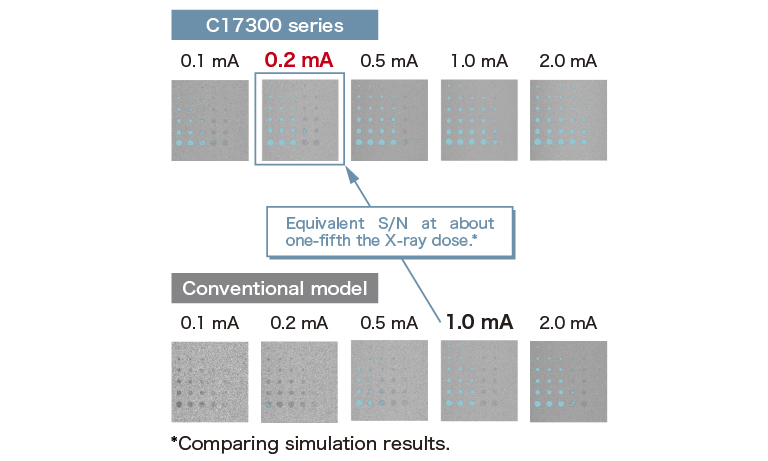

S/N comparison
Test conditions
Conveyer speed: 20 m/min
Tube voltage: 60 kV
Tube current: 0.1 mA to 2.0 mA
Image quality comparison

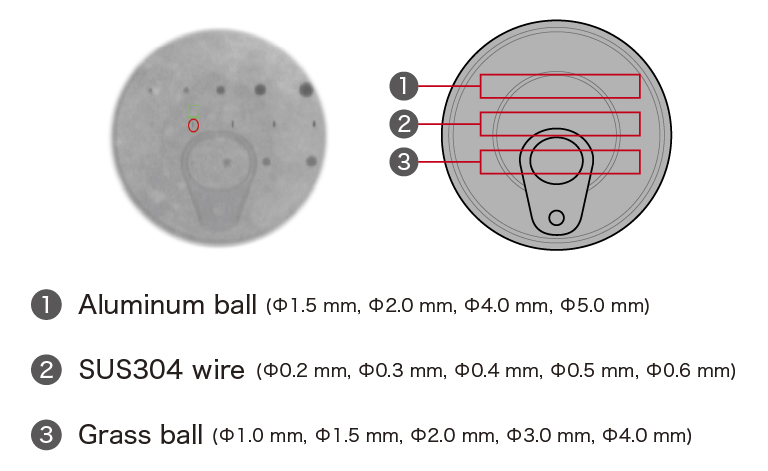

Image example (canned tuna)

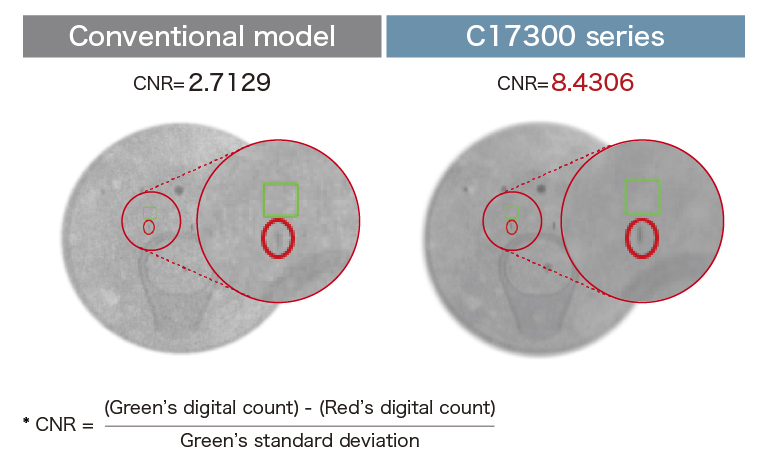

Comparison of CNR* in actual images SUS304 wire (Φ0.3 mm)
Image examples

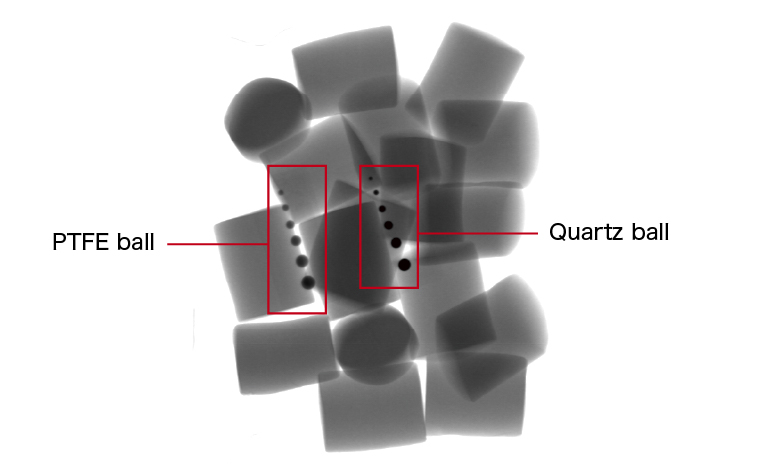

Marshmallow (box)
Test conditions
Conveyer speed: 40 m/min
Tube voltage: 50 kV
Tube current: 2 mA
Foreign maters
Quartz ball (diameter)
2.0 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm, 7.0 mm
PTFE ball (diameter)
3.2 mm, 4.0 mm, 5.0 mm, 6.0 mm, 7.2 mm, 8.0 mm

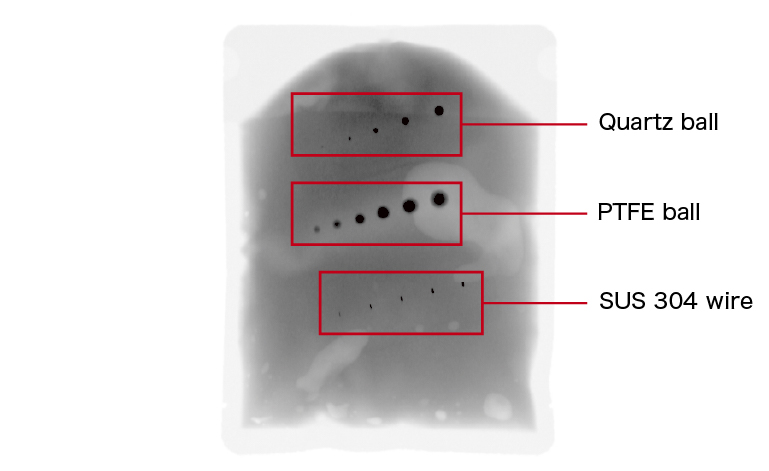

Pasta sauce (pouch)
Test conditions
Conveyer speed: 40 m/min
Tube voltage: 50 kV
Tube current: 2 mA
Foreign maters

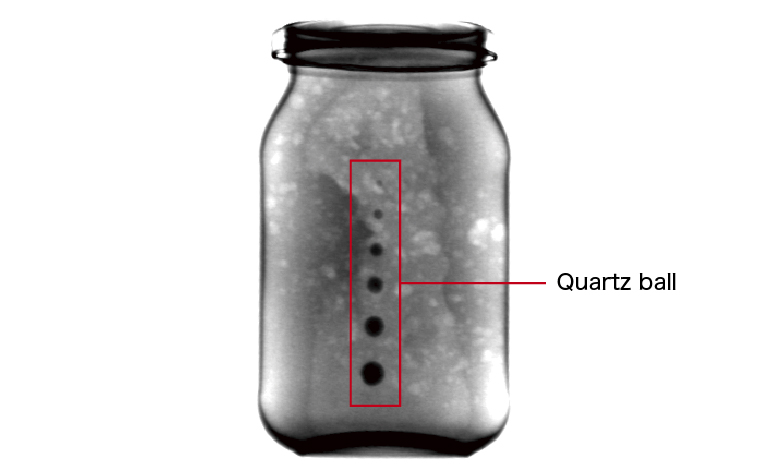

Quartz ball (diameter)
1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm, 4.0 mm
PTFE ball (diameter)
3.2 mm, 4.0 mm, 5.0 mm, 6.0 mm, 7.2 mm, 8.0 mm
SUS 304 wire (diameter)
0.2 mm, 0.3 mm, 0.4 mm, 0.5 mm, 0.6 mm
Tomato sauce (bottle)
Test conditions
Conveyer speed: 40 m/min
Tube voltage: 120 kV
Tube current: 2.5 mA
Foreign mater
Quartz ball (diameter)
2.0 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm, 7.0 mm
Olive (bottle)
Test conditions
Conveyer speed: 40 m/min
Tube voltage: 120 kV
Tube current: 2.5 mA

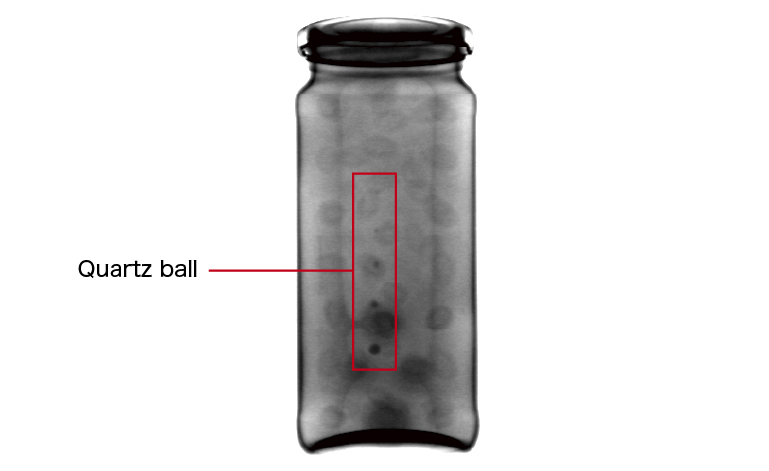

Foreign mater
Quartz ball (diameter)
1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm, 4.0 mm
Prosciutto (pack)
Test conditions
Conveyer speed: 40 m/min
Tube voltage: 30 kV
Tube current: 3 mA

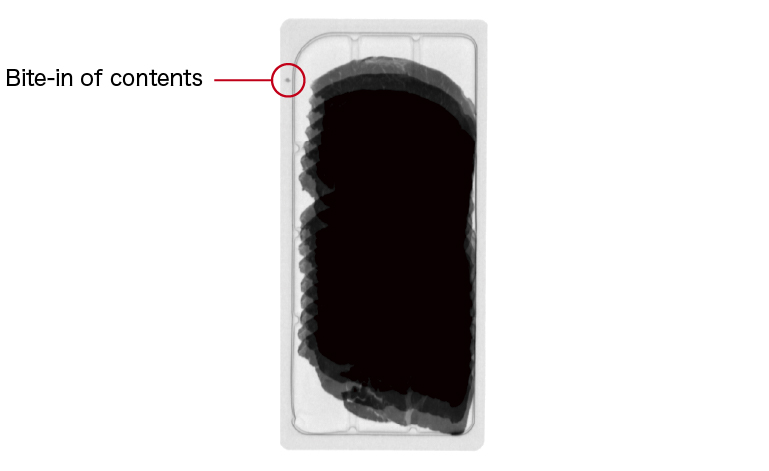

Bite-in of contents to the sealing part
Almond (bulk)
Test conditions
Conveyer speed: 100 m/min
Tube voltage: 50 kV
Tube current: 6 mA

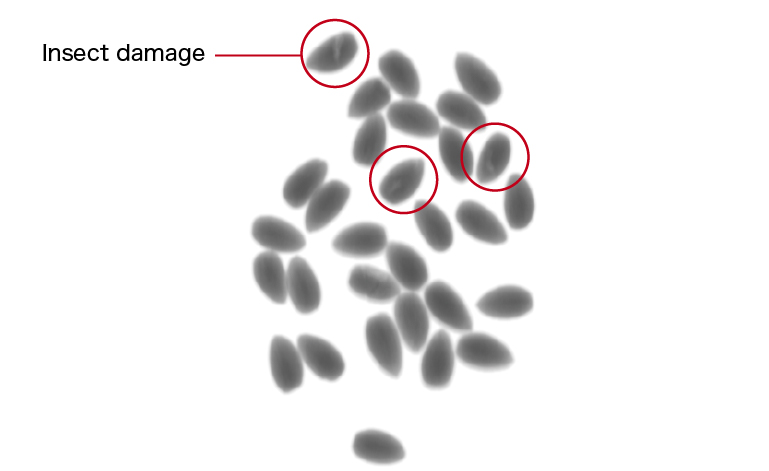

Insect damage
Specifications
| Type number | C17300-30UP | C17300-40UP | C17300-60UP |
|---|---|---|---|
| Pixel pitch | 0.4 mm | ||
| Pixel number | 768 (H) × 8 (V) | 1024 (H) × 8 (V) | 1536 (H) × 8 (V) |
| Detection width | 307.5 mm | 410 mm | 615 mm |
| Line speed | 4.0 m/min to 200 m/min (0.167 kHz to 8.333 kHz) | ||
| Effective X-ray tube voltage range | 10 kV to 160 kV | ||
| Scintillator | Gd-scintillator | ||
| Digital output | 14 bit | ||
| Interface | USB 3.0 | ||
| Power supply | DC +24 V | ||
| Ambient operating temperature | 0 °C to +40 °C | ||
| Ambient operating humidity | 30 % to 80 % (with no condensation) | ||
| Ambient storage temperature | -10 °C to +50 °C | ||
| Ambient storage humidity | Less than 90 % (with no condensation) | ||

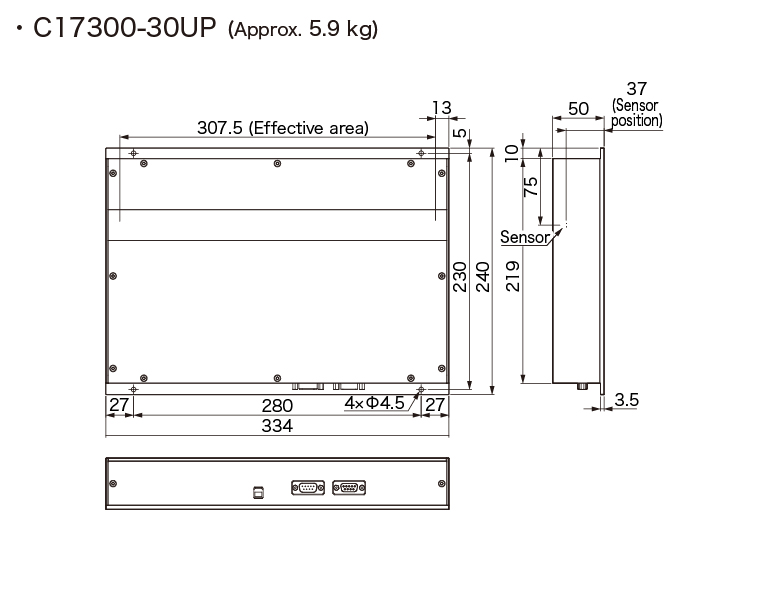

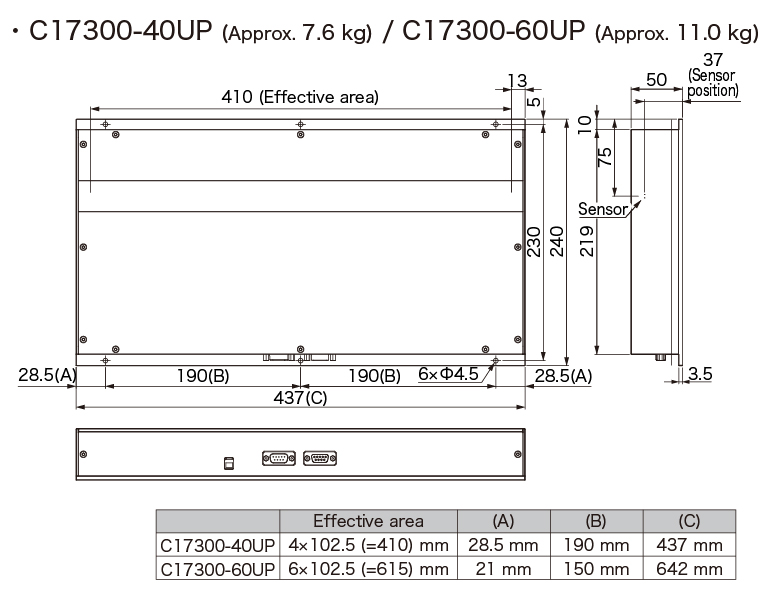

Dimensions (Unit: mm)
