Pulsed laser diode

L11348-307-05

High-power pulsed laser diode, Peak emission wavelength: 870 nm



The L11348-307-05 is a pulse-driven multimode laser diode that achieves a high peak output.
It is suitable for applications such as laser rangefinders, security, management and monitoring.



Features
- Emitter: 3 stack
- Peak emission wavelength: 870 nm typ.
- Emission area (design value): 70 μm × 10 μm

Peak emission wavelength (min.) 860 nm
Peak emission wavelength (typ.) 870 nm
Peak emission wavelength (max.) 880 nm
Peak radiant flux (typ.) 21 W
Operating voltage (typ.) 13 V
Spectral half width (typ.) 6 nm
Beam spread angle (Horizontal) (typ.) 11 °
Beam spread angle (Vertical) (typ.) 24 °
Threshold current (typ.) 0.5 A
Emission area 70 μm × 10 μm
Package Metal (φ5.6 CD)
Pulse forward current 10 A
Pulse width 100 ns
Operating temperature -40 ℃ to +85 ℃
Storage temperature -40 ℃ to +100 ℃

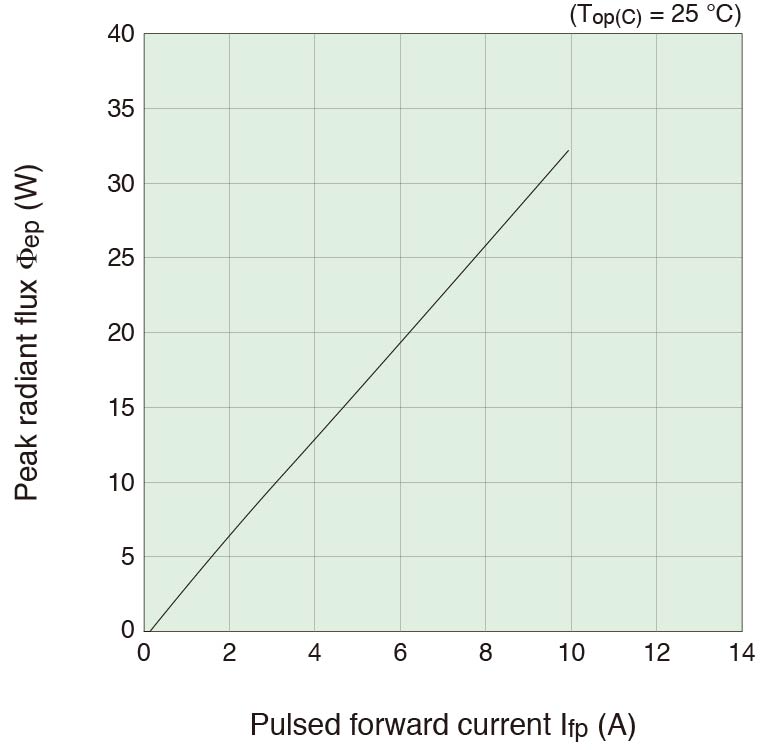

Peak radiant flux vs. pulse forward current (typical example)

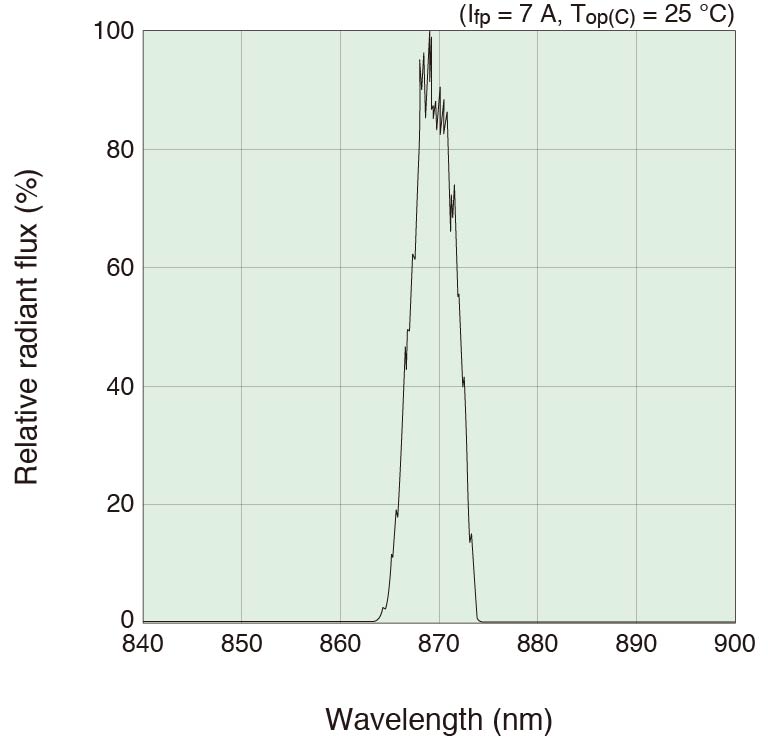

Emission spectrum (typical example)

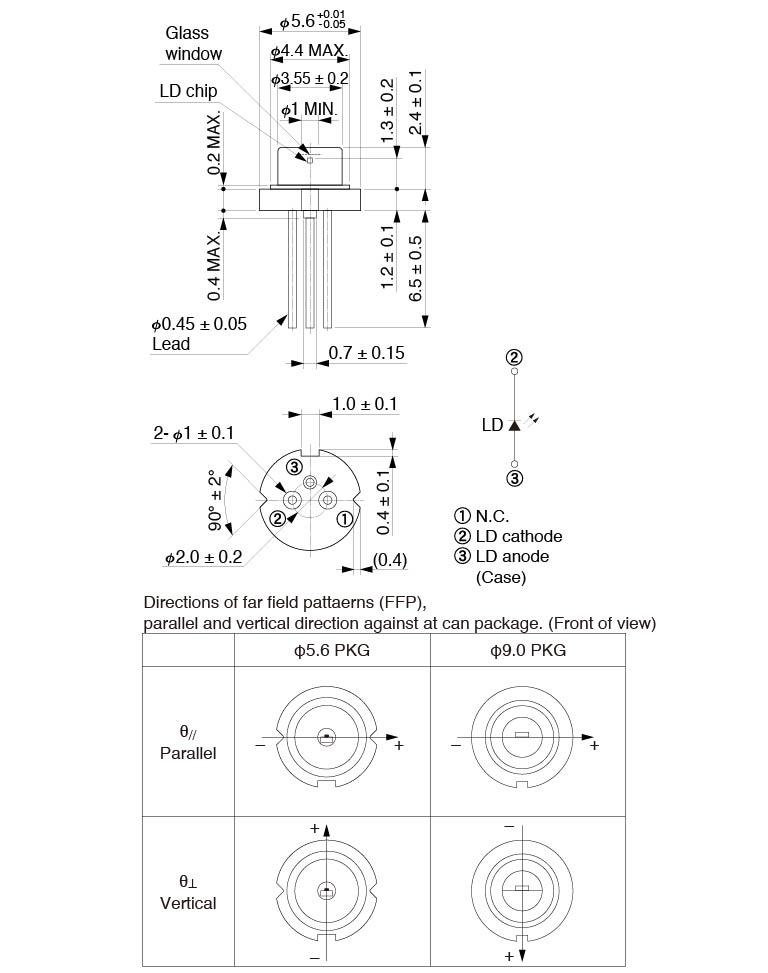

Dimensional outline (unit: mm)
