Pulsed laser diode

L11854-307-05

High-power pulsed laser diode, Peak emission wavelength: 905 nm



L11854 series are pulse-driven multimode laser diodes that achieve high peak output.
These are suitable for applications such LiDAR and 3D sensing.



Features
- Emitter: 3 stack
- Peak emission wavelength: 905 nm typ.
- Emission area (design value): 70 μm × 10 μm
- Sharp and stable near filed pattern (NFP)

Peak emission wavelength (min.) 895 nm
Peak emission wavelength (typ.) 905 nm
Peak emission wavelength (max.) 915 nm
Peak radiant flux (typ.) 21 W
Operating voltage (typ.) 11 V
Spectral half width (typ.) 6 nm
Beam spread angle (Horizontal) (typ.) 11 °
Beam spread angle (Vertical) (typ.) 23 °
Threshold current (typ.) 0.4 A
Emission area 70 μm × 10 μm
Package Metal (φ5.6 CD)
Pulse forward current 10 A
Pulse width 100 ns
Operating temperature -40 ℃ to +85 ℃
Storage temperature -40 ℃ to +100 ℃

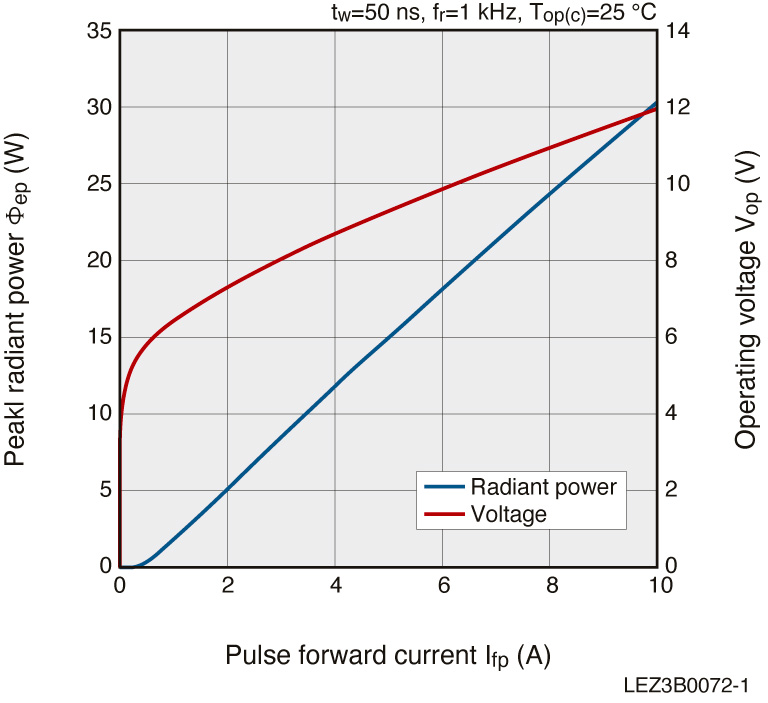

Peak radiant flux, operating voltage vs. pulse forward current (typical example)

Emission spectrum (typical example)

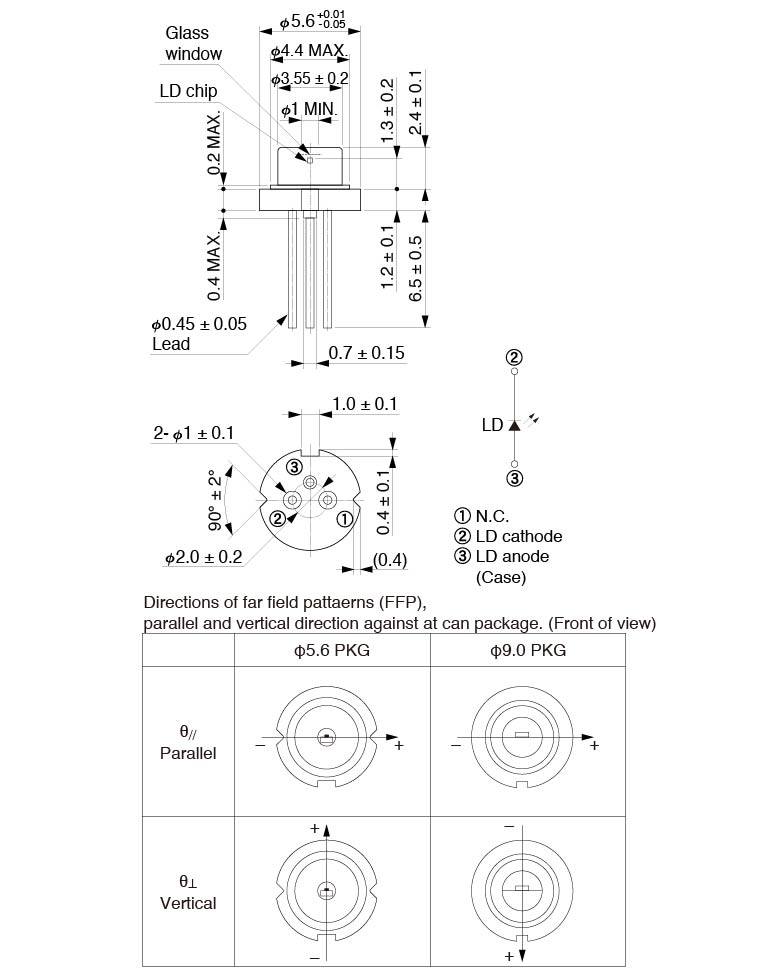

Dimensional outline (unit: mm)
