Infrared LED

L10660-01

Peak emission wavelength: 1.45 μm

The L10660-01 is a high-power LED that emits infrared light at a peak wavelength of 1.45 μm. The LED is suitable for applications requiring use of infrared emitters with InGaAs photodiode.


Features
- Peak emission wavelength: 1.45 μm
- High radiant output power

Package Metal
Package Category With lens
Peak emission wavelength (min.) 1400 nm
Peak emission wavelength (typ.) 1450 nm
Peak emission wavelength (max.) 1500 nm
Spectral half-width (typ.) 120 nm
Radiant flux (typ.) 2.8 mW
Forward voltage (typ.) 1 V
Cutoff frequency (typ.) 15 MHz
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

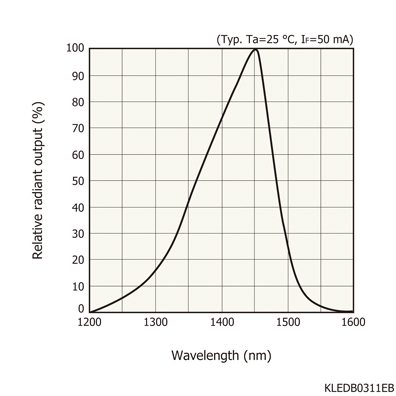

Emission Spectrum

Dimensional outline (unit: mm)
