Red LED

L10762

Resonant cavity LED for POF data communication



The L10762 is a red LED designed for POF data communications. A microball lens is bonded to the LED chip to enhance fibrecoupling efficiency.


Features
- Improved fi ber-coupling efficiency
- High-speed response: 70 MHz



Package Metal
Package Category With ball lens
Peak emission wavelength (min.) 640 nm
Peak emission wavelength (typ.) 660 nm
Peak emission wavelength (max.) 670 nm
Spectral half-width (typ.) 15 nm
Forward voltage (typ.) 1.9 V
Cutoff frequency (typ.) 70 MHz
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

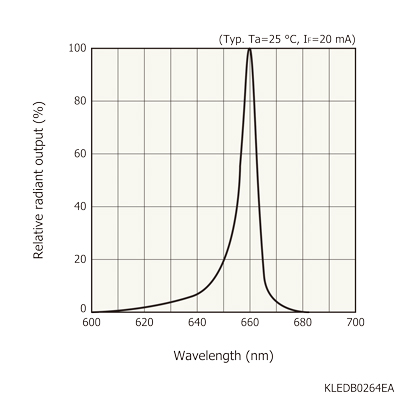

Emission Spectrum

Dimensional outline (unit: mm)
