Red LED

L10881

RC-LED for 156 Mbps POF communications

The L10881 is designed for high-speed POF (plastic optical fi ber) communications. The device is molded into miniature plastic package with lens, allowing easy and efficient coupling to a POF.


Features
-Red RC-LED for POF data link
-Peak emission wavelength: 650 nm
-High-speed response: fc=70 MHz Typ.
-High output power: Po=-2 dBm (IF=20 mA, φ1 mm, POF)
-Designed to be used with the S7727

Type1 For POF data links
Part Number S7727
Package Plastic
Package type With lens
Bandwidth DC to 156 Mbps
Operating temperature 0 to +60 deg.C
Storage temperature -40 to +85 deg.C
Measurement condition Typ. Ta=25 deg.C, unless otherwise noted

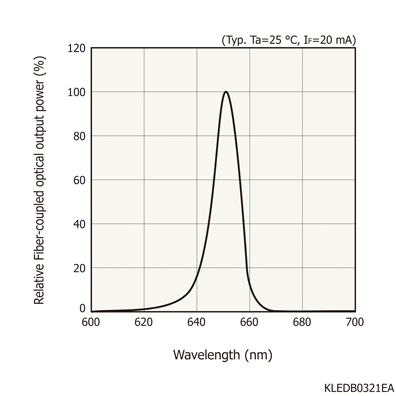

Emission Spectrum

Dimensional outline (unit: mm)
