Infrared LED


High output power LED with mini-lens

The L11368 is a high-power LED with a microball lens bonded to the surface of the LED chip having an internal confined structure.

- High radiant output power: 65 μW typ. (IF=50 mA, GI 50)
- Cutoff frequency: 50 MHz typ. (IF=50 mA)

Package Metal
Package Category With mini lens
Peak emission wavelength (min.) 850 nm
Peak emission wavelength (typ.) 870 nm
Peak emission wavelength (max.) 890 nm
Spectral half-width (typ.) 35 nm
Forward voltage (typ.) 2 V
Cutoff frequency (typ.) 50 MHz
Measurement condition Typ. Ta=25 ℃, unless otherwise noted

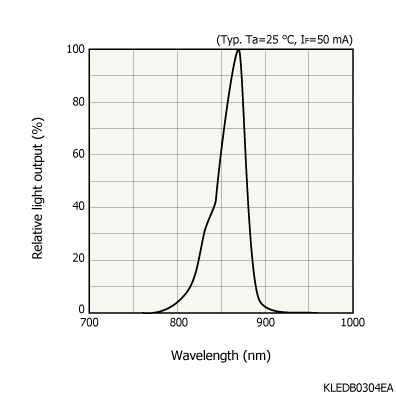

Emission Spectrum

Dimensional outline (unit: mm)
