The L13141-0085K is current confinement type, high reliability infrared LED.
- Reliability improved from the previous product
- Small emission spot: φ110 μm
- Light output power: 2.8 mW (IF=50 mA typ.)
- Low cost
|Package Category||Low-profile flat cap|

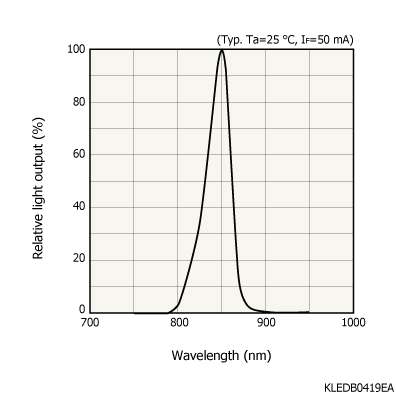

|Peak emission wavelength (min.)||830 nm|
|Peak emission wavelength (typ.)||850 nm|
|Peak emission wavelength (max.)||870 nm|
|Spectral half-width (typ.)||30 nm|
|Radiant flux (typ.)||2.8 mW|
|Forward voltage (typ.)||1.7 V|
|Cutoff frequency (typ.)||25 MHz|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted|
