|Package Category||Resin potted

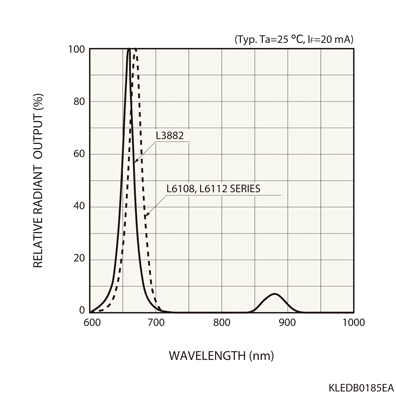

|Peak emission wavelength (min.)||650 nm|
|Peak emission wavelength (typ.)||670 nm|
|Peak emission wavelength (max.)||700 nm|
|Spectral half-width (typ.)||25 nm|
|Radiant flux (typ.)||5.5 mW|
|Forward voltage (typ.)||1.8 V|
|Cutoff frequency (typ.)||3 MHz|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted|
