The L9337 is an infrared LED developed for optical switches. Because a high-power LED chip is mounted, the L9337 provides higher radiant output power than previous devices, yet is available at a low cost due to the improved manufacturing process.
-High radiant output power
|Package Category||Resin potted
|Peak emission wavelength (min.)||840 nm|

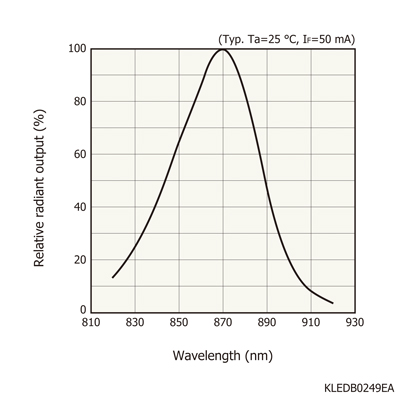

|Peak emission wavelength (typ.)||870 nm|
|Peak emission wavelength (max.)||900 nm|
|Spectral half-width (typ.)||45 nm|
|Radiant flux (typ.)||23 mW|
|Forward voltage (typ.)||1.42 V|
|Cutoff frequency (typ.)||40 MHz|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted|
