Microfocus X-ray source

L10711-26

Open type microfocus x-ray source using the transmission target. Dual cathode mode (S mode[LaB6] / W mode[Tungsten]) switchable.

Features

  • High stability
  • Dual cathode Mode
    High resolution : 0.2 µm (S mode)
    High intensity : 9.6 W (W mode)
  • No high voltage cable connection required
  • Easy to replace cathode
  • Easy operation

Specifications

Tube Voltage 160 kV
Type Open type
Tube Voltage Operational Range 20 kV to 160 kV
Maximum Output 9.6 W
X-ray Focal Spot Size S mode: Minimum resolution 0.2 μm (Suitable measurement conditions are necessary) / W mode: Minimum resolution 0.8 μm
X-ray Beam Angle (Coned) 120 degree
Focus to Object Distance (FOD) 0.3 mm

Dimensional outlines (Unit mm)

X-RAY TUBE UNIT L10712-26

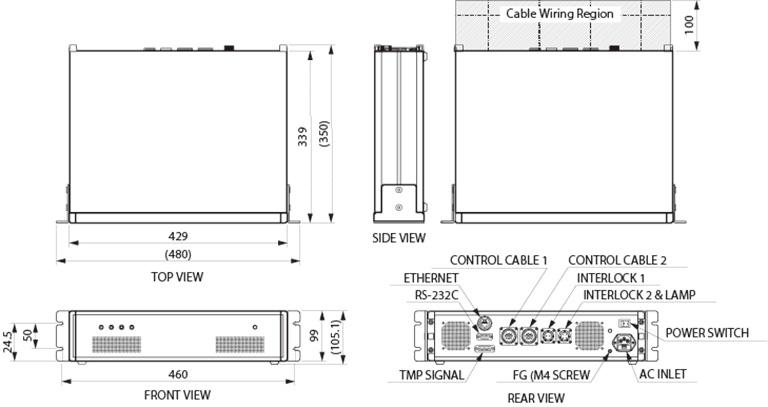

X-RAY CONTROL UNIT C10713-26

System configuration of L10711-26 : X-ray tube unit(L10712-26) + X-ray control unit(C10713-26) + accessories
