Flow cells

J11020-000-24A

Hamamatsu provides a wide variety of quartz glass flow cells (cuvettes) designed and fabricated based on our accumulated expertise in glass processing. 24A is a standard type with a flow channel size of 0.2 mm x 0.2 mm. These flow cells have high dimensional accuracy that ensures the ideal flow rate and flow speed control.

Specifications

Parameter J11020-000-XXX Unit
-23A -24A -25A -33A -34A -35A
Flow channel size 0.150 × 0.150 0.200 × 0.200 0.250 × 0.250 0.150 × 0.150 0.200 × 0.200 0.250 × 0.250 mm
Optical effective areas 5.0 × 2.0 Φ2.0 / 2.0 x 0.6 mm
Material Synthetic silica -
Operating ambient temperature +15 to +35
Operating ambient relative humidity <85 %RH
Storage temperature 0 to +45
Weight 0.87 0.57 g

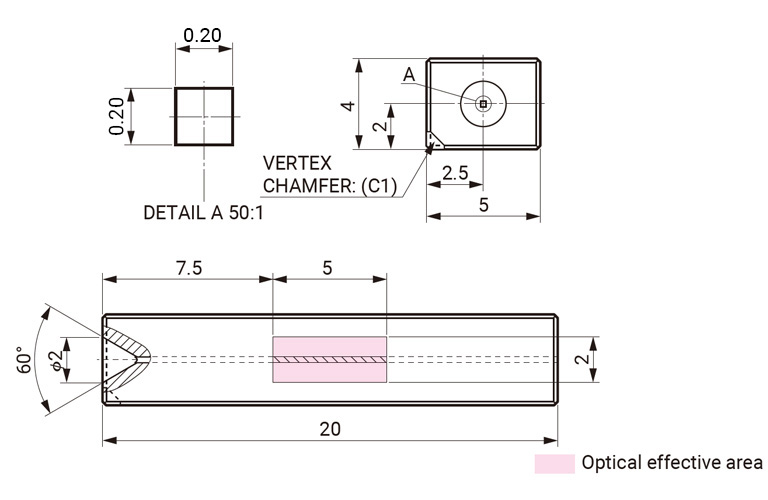

Dimensional outline (Unit:mm)

Contact us for more information.
