Polarizer block

A11026

Polarizing filters and waveplates are polarizing elements whose polarization characteristics change depending on direction and angle. The A11026 is a simple, course-movement holder block that can be used to adjust the direction and angle.

Specifications

Type No. Effective beam size Applicable polarizing element size Adjustable range Angle scale Weight
A11026 φ8 mm Diameter: 25 mm to 25.4 mm
Thickness: 1 mm to 8 mm
90° *1 5°Intervals *2 Approx. 55 g

*1: Can be rotated 90° or more by changing the angle adjustment screw position.
*2: Scale indicates adjustment intervals and does not indicate adjustable pitch.Can be fixed at any desired angle within the adjustable range of 90°.
Supplied: Hex wrench S1.5

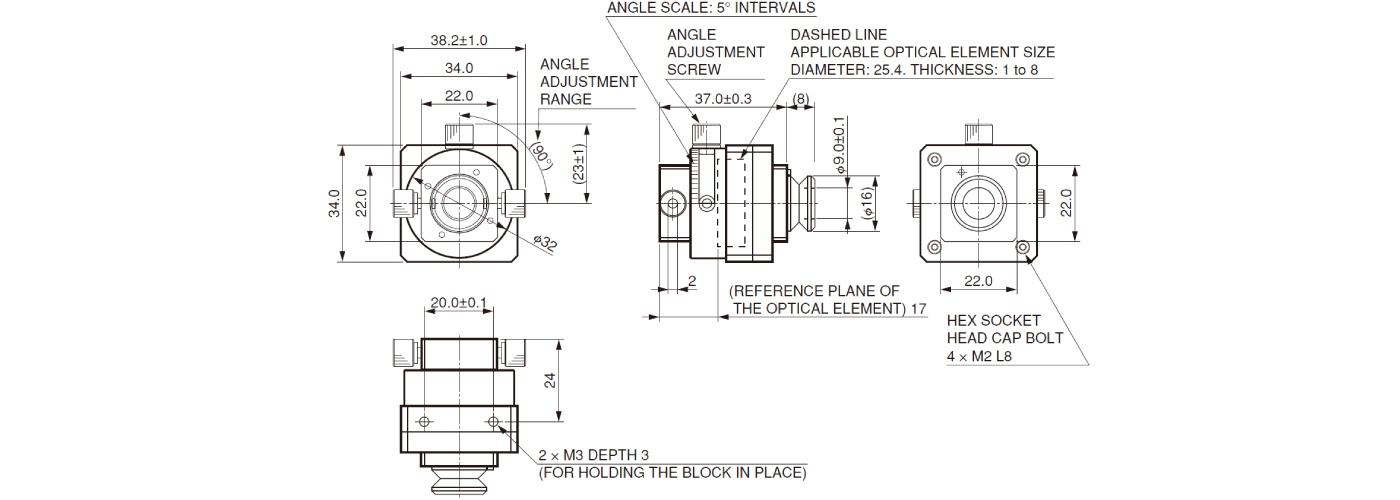

Dimensional outlines (Unit: mm)
