ELECTRON MULTIPLIER TUBE

R474

Input aperture size : 8 mm x 6 mm, Operating vacuum level : 133 x 10-4 Pa

Dynode Stages 16
Dynode Structure Box and Grid
Dynode Material Cu-BeO
Input Aperture Diameter 8 mm x 6 mm
Supply Voltage 1800 V
Gain Typ. 1.0 x 106
Rise Time Typ. 9.3 ns
Anode to All Other Electrode Capacitance 5 pF
[Max. Rating] Anode to First Dynode Voltage 4000 V
[Max. Rating] Anode to Last Dynode Voltage 350 V
[Max. Rating] Average Anode Current 10 μA
[Max. Rating] Operating Vacuum Level 0.01 Pa

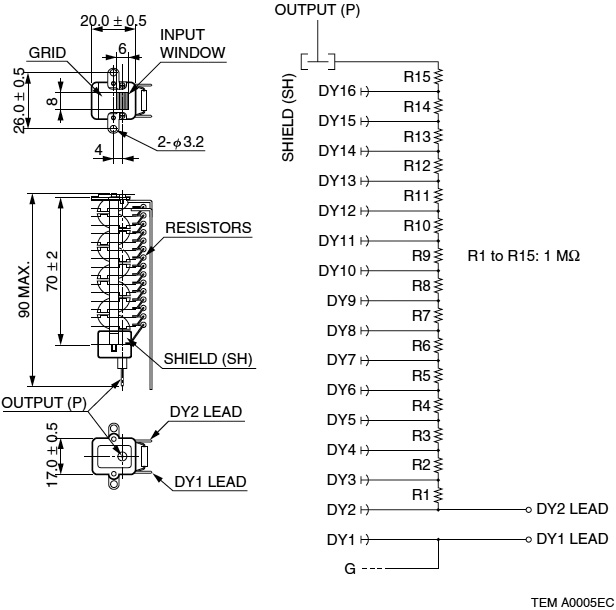

Dimensional outlines (Unit mm)
