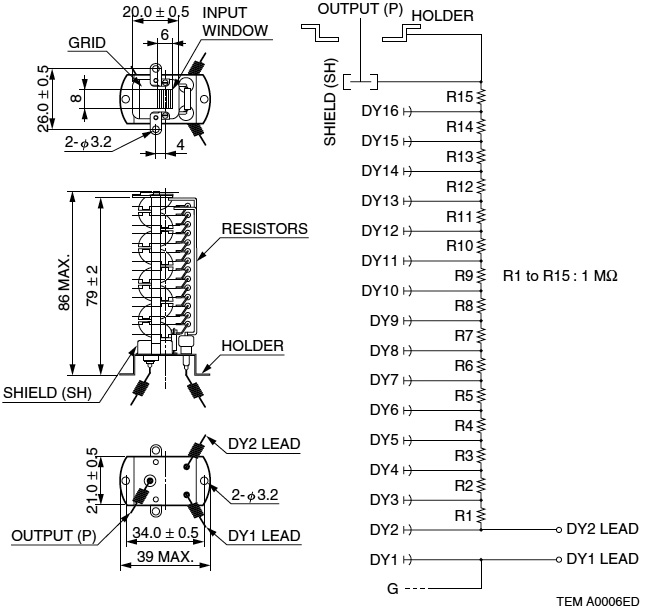

Electron multiplier tube
|Dynode Structure||Box and Grid|
|Input Aperture Diameter||8 x 6 mm|
|Supply Voltage||1500 V|
|Gain Typ.||1.0 x 106|
|Rise Time Typ.||9.3 ns|
|Anode to All Other Electrode Capacitance||4 pF|
|[Max. Rating] Anode to First Dynode Voltage||4000 V|
|[Max. Rating] Anode to Last Dynode Voltage||350 V|
|[Max. Rating] Average Anode Current||10 μA|
|[Max. Rating] Operating Vacuum Level||133 x 10-4 Pa|
