Image intensifier unit

C14245-11112

C14245-11112 is an image intensifier unit that can increase the incident light by several thousand to several million times. When connected to a camera, it enables observation of high-speed phenomena and weak luminescence phenomena.

Applications

  • Analyses of high-speed luminous phenomena.
  • Measurement of faint light imaging.
  • Observation of high-speed moving object.

Characteristic

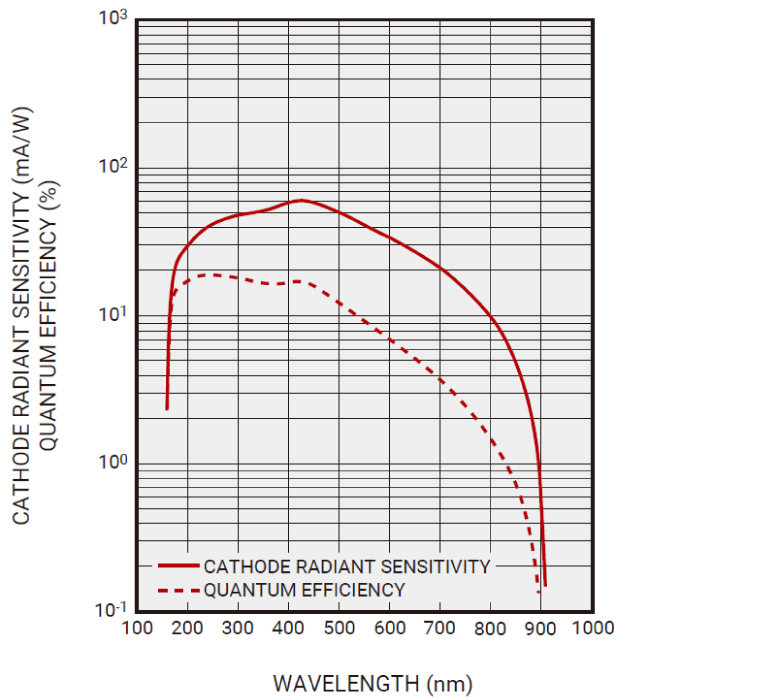

Spectral response (Typ.)

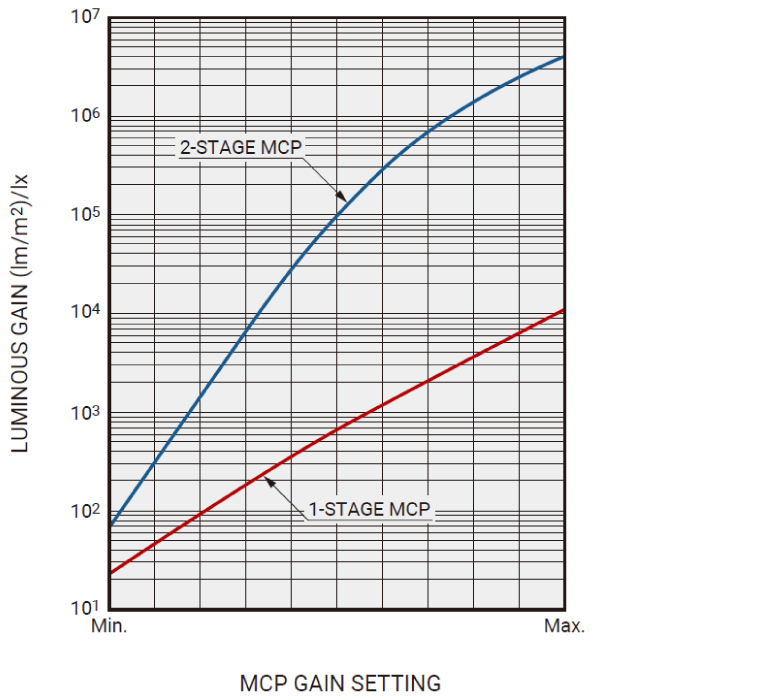

Gain (Typ.)

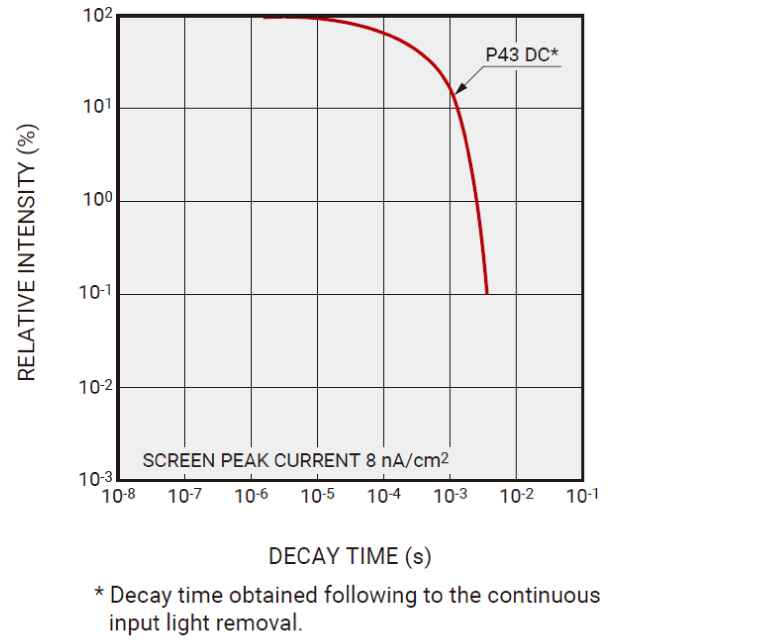

Typical decay characteristics

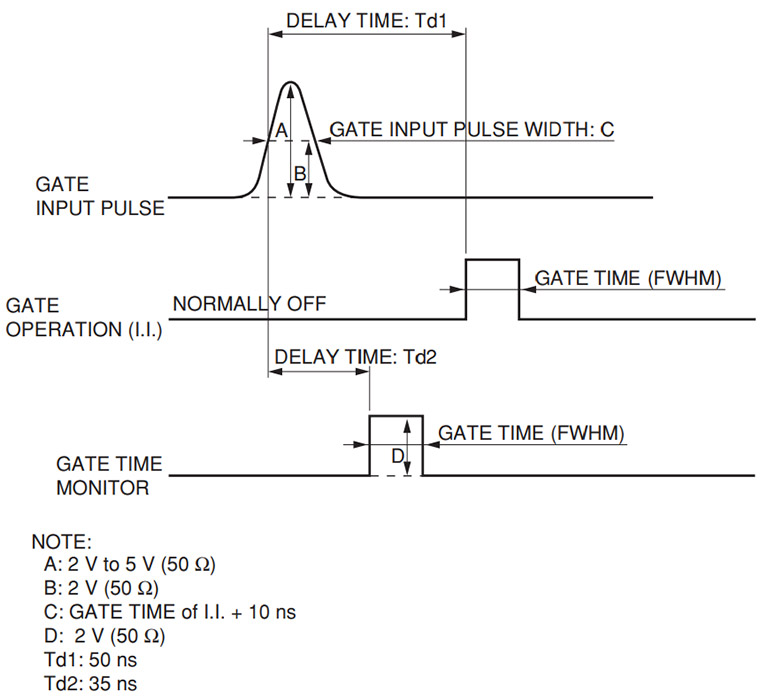

Time sequence

Specifications

Product Name AC 100 to 240 V
Measurement Wavelength UV to NIR
Gate Time 3 ns
Gate Maximum Repetition Frequency 30 kHz
Photocathode Multialkali
Spectral Response (Short) 185 nm
Spectral Response (Long) 900 nm
Spectral Response (Peak) 0.15
[I.I. unit] Input Area Φ18
[I.I. unit] Output Area 30 ns
[I.I. unit] Phosphor Screen Output Window P43 / FOP
Stages of MCP 1
[I.I. unit] Luminous Gain Typ. 1.1 x 104 (lm/m2)/lx
[I.I. unit] EBI Radiant Typ. UV to near IR range
[I.I. unit] Limiting Resolution Typ. 64 Lp/mm
PC Control 230 μA/lm
Power Supply 100 V to 240 V
Operating Ambient Temperature 0 ℃ ~ +40 ℃
Operating Ambient Humidity Below 70 %

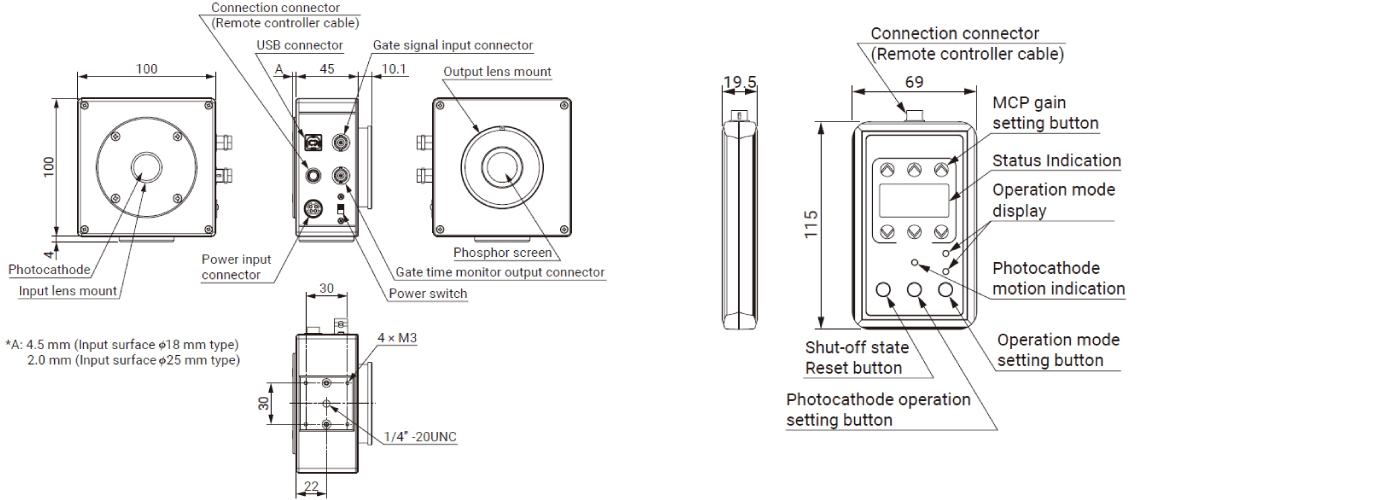

Dimensions (Unit: mm)
