Image intensifier unit

C14245-21111

C14245-21111 is an image intensifier unit that can increase the incident light by several thousand to several million times. When connected to a camera, it enables observation of high-speed phenomena and weak luminescence phenomena.

Characteristic

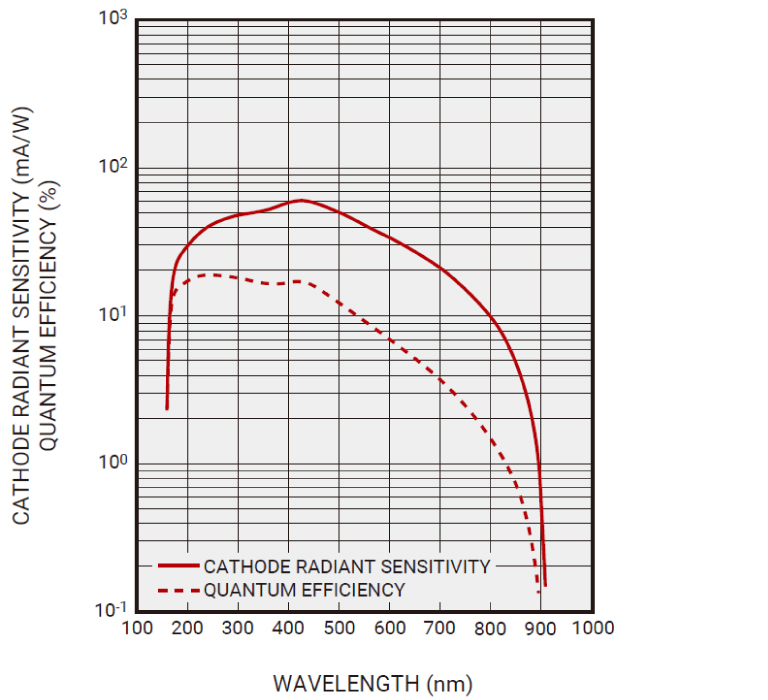

Spectral response (Typ.)

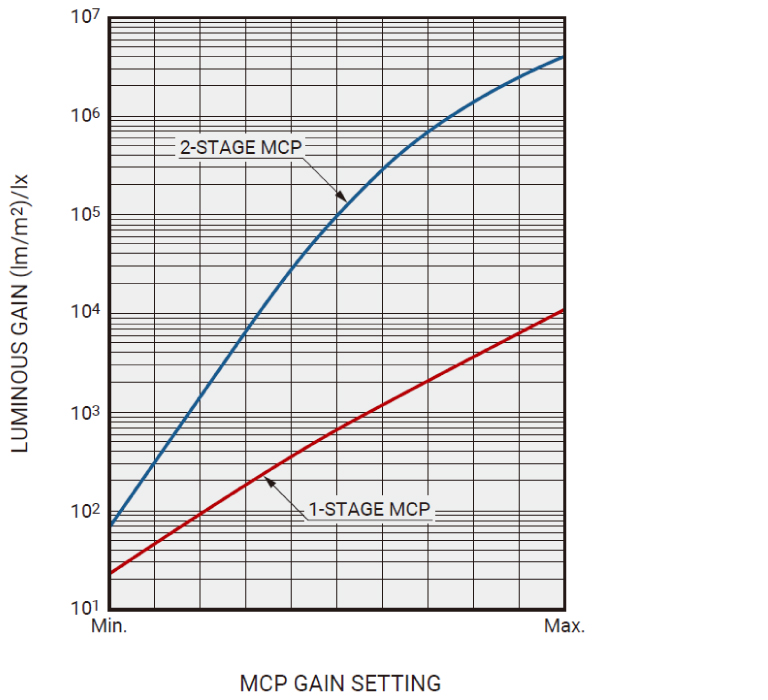

Gain (Typ.)

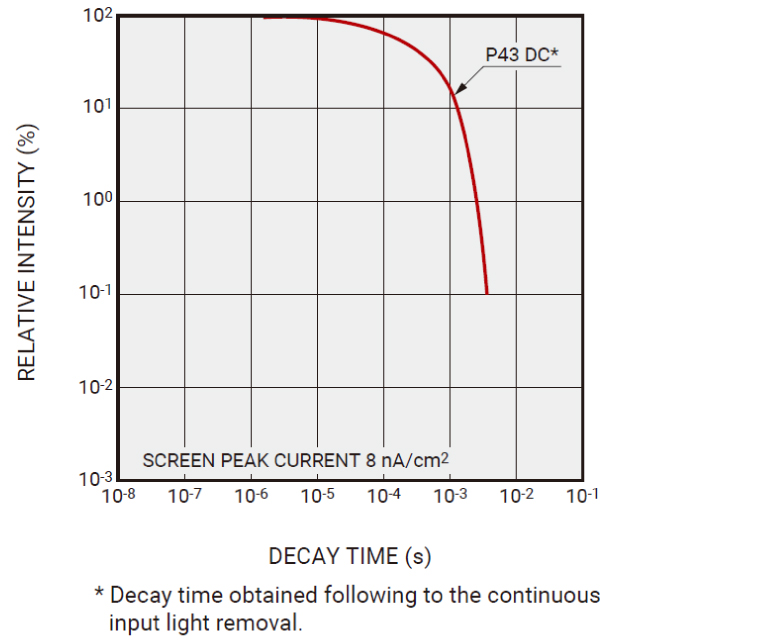

Typical decay characteristics

Specifications

Input lens mount C-mount
Input surface size Dia.25 mm
Photocathode Multialkali
Number of MCP stages 1
Output phosphor screen / window P43 / FOP
Spectral Response (Short) 185 nm
Spectral Response (Long) 900 nm
Cathode luminous sensitivity 280 μA/lm
Cathode radiation sensitivity 62 mA/W
Cathode quantum efficiency 18 %
Luminous gain 1.2 x 104 (lm/m2)/lx
EBI 1.0 x 10-11 lm/cm2
Central limitting resolution 64 Lp/mm
Image magnification 1
Gate minimum ON time -
Gate maximum repetition -
Power supply voltage (using AC adapter) 100 V to 240 V
Operating ambient temperature 0 ℃ to +40 ℃
Operating ambient humidity and storage humidity Below 70 %

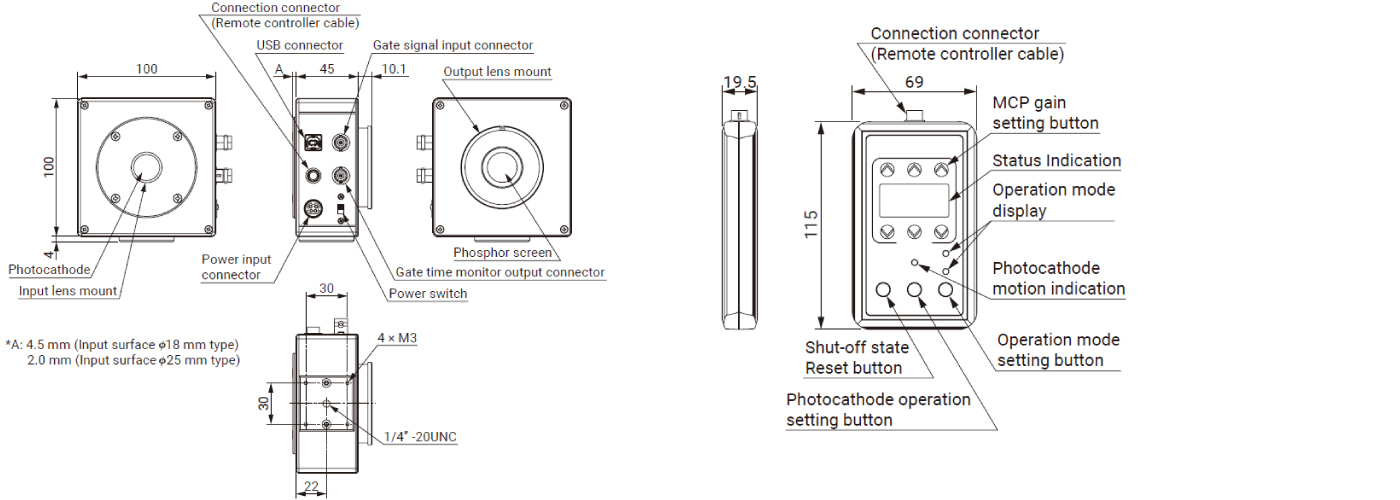

Dimensions (Unit: mm)

Contact us for more information.
