Image intensifier unit

C16031-311

The C16031-311 is a high-speed gated image intensifier unit designed for use with high-speed cameras. In addition to an image intensifier, high-voltage power supply circuit, and gate drive circuit, the C16031 series further contains an image booster in its cubic housing. When capturing and reading out images at a high frame rate, we recommend you use the C16031 series by connecting it to a high-speed camera.

Characteristic

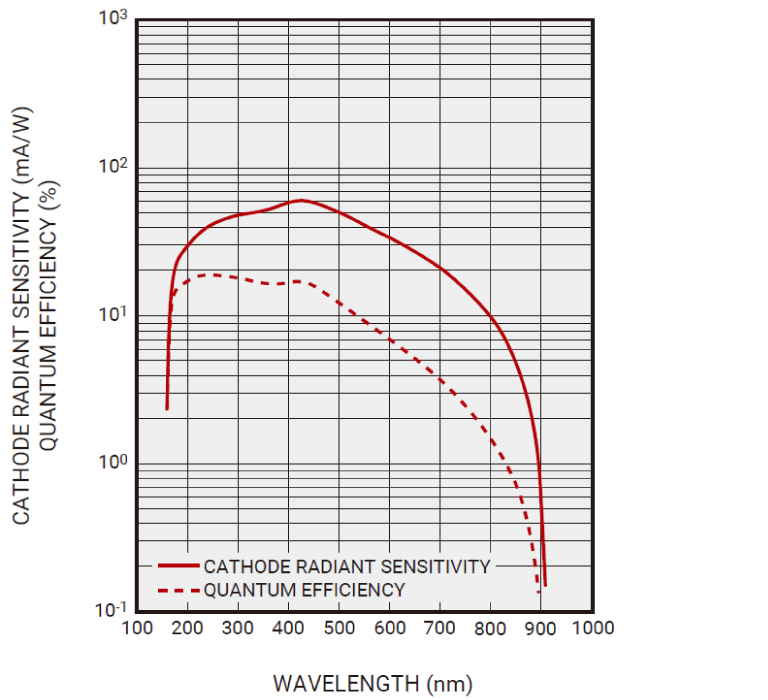

Spectral response (Typ.)

Gain (Typ.)

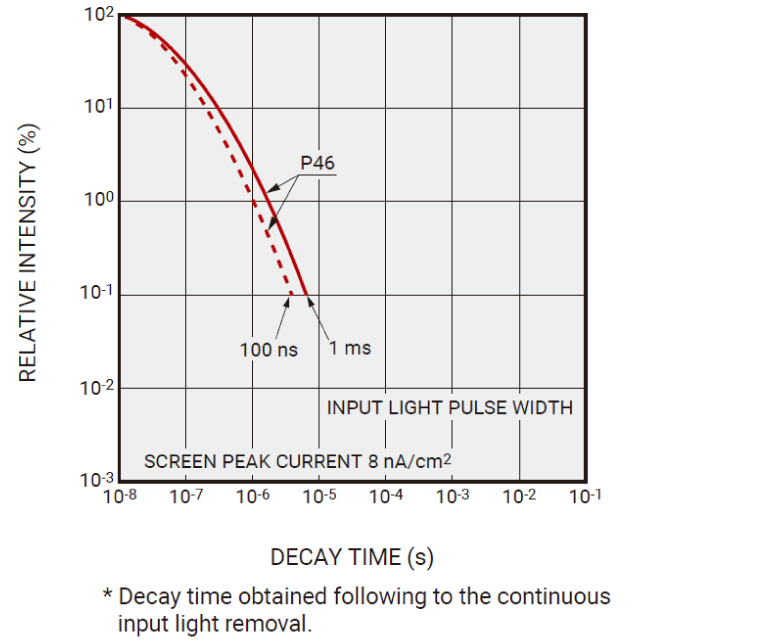

Typical decay characteristics

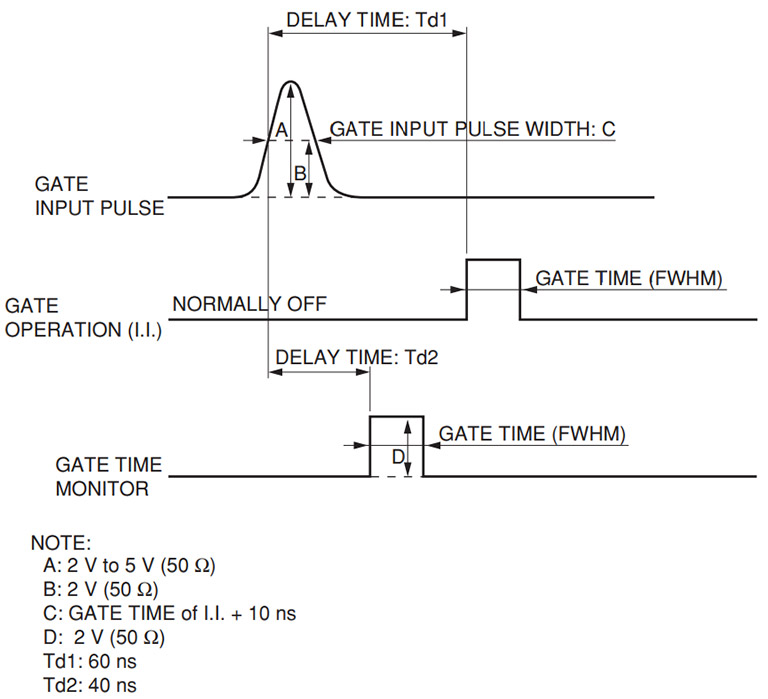

Time sequence

Specifications

Input lens mount F-mount
Input surface size Dia.25 mm
Photocathode Multialkali
Number of MCP stages 1
Output phosphor screen / window P46 / FOP
Spectral Response (Short) 185 nm
Spectral Response (Long) 900 nm
Cathode luminous sensitivity 230 μA/lm
Cathode radiation sensitivity 53 mA/W
Cathode quantum efficiency 15 %
Luminous gain 1.0 x 105 (lm/m2)/lx
EBI 2 x 10-9 lm/cm2
Central limitting resolution 38 Lp/mm
Image magnification 0.67
Gate minimum ON time 10 ns
Gate maximum repetition 200 kHz
Power supply voltage (using AC adapter) 100 V to 240 V
Operating ambient temperature 0 ℃ to +40 ℃
Operating ambient humidity and storage humidity Below 70 %

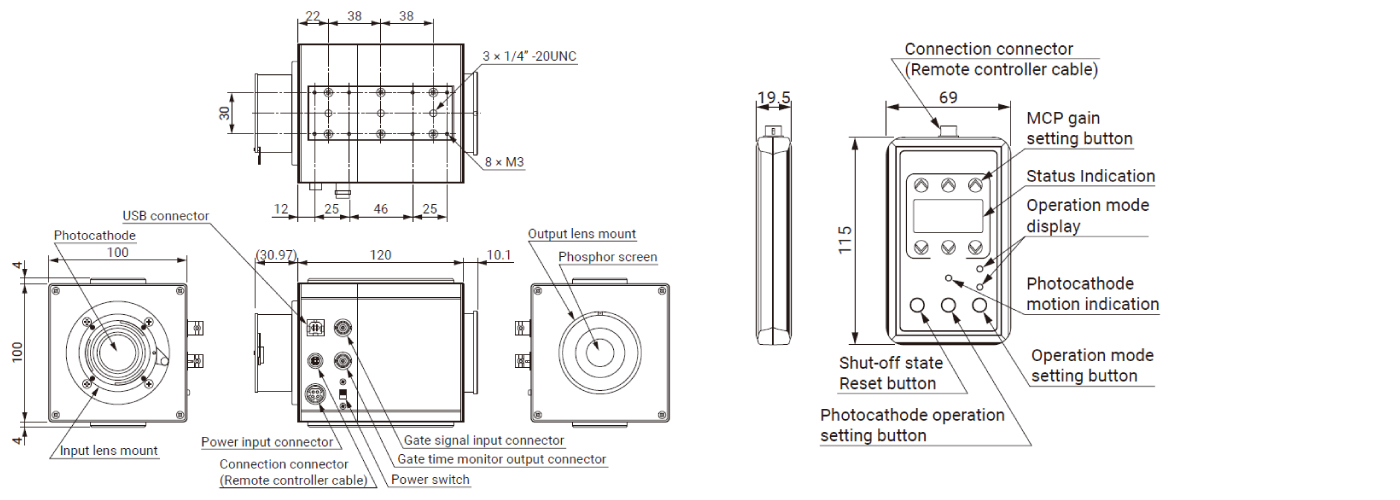

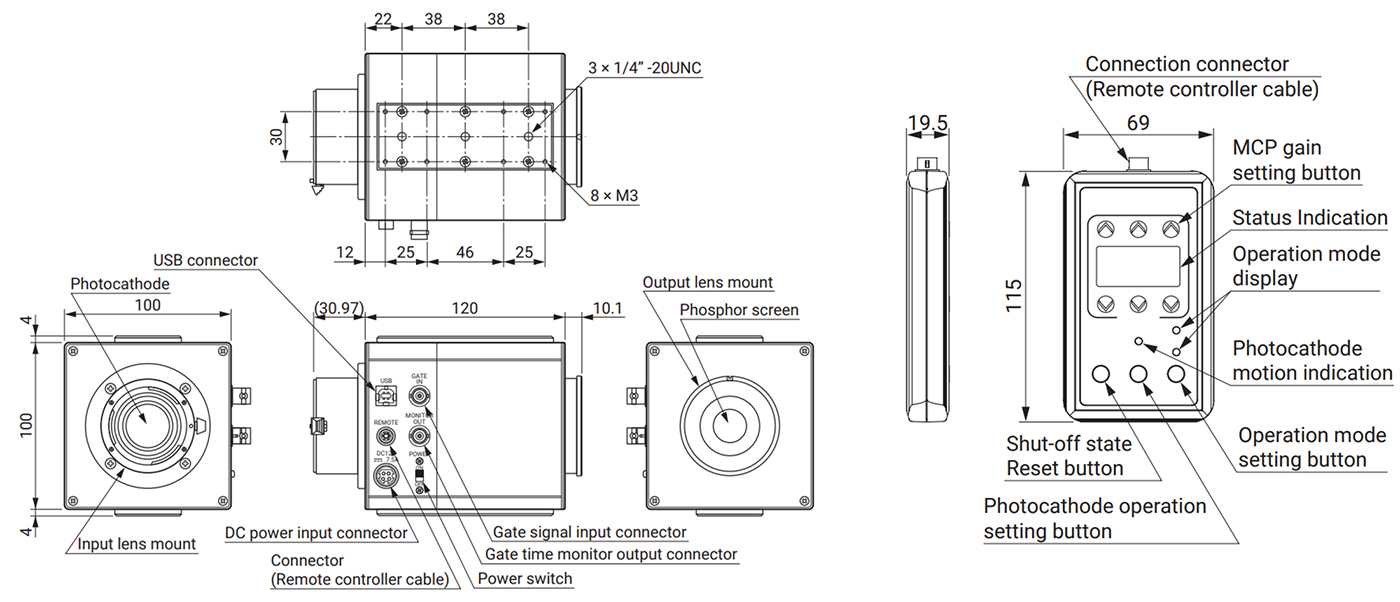

Dimensions (Unit: mm)
