Image intensifier tube

V10308U

Specifications

Feature Second Generation
Spectral Response (Short) 160 nm
Spectral Response (Long) 900 nm
Spectral Response (Peak) 430 nm
Input Window Synthetic Silica
Index of Refraction 1.46

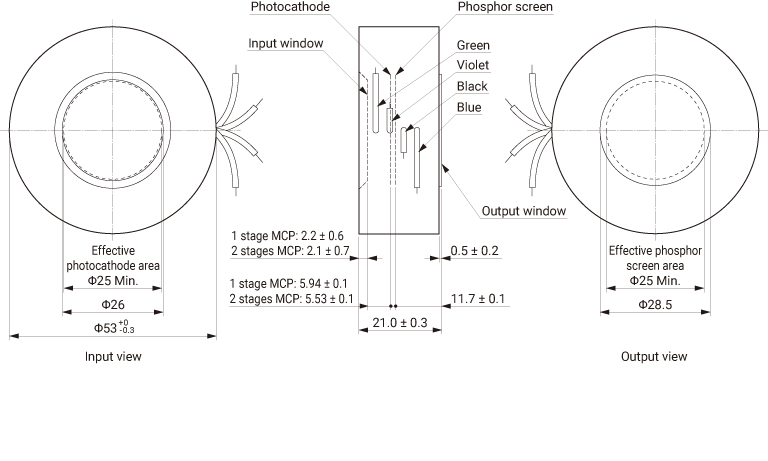

Effective Photocathode Area Dia.25 mm
Stage of MCP 2
Photocathode Material Multialkali
Gate Function Non
Minimum Gate Time - ns
Luminous Sensitivity 170 μA/lm
Radiant Sensitivity 60 mA/W
Quantum Efficiency (QE) 17 %
Luminous Gain 5.0 x 106 (lm/m2)/lx
Radiant Emittance Gain 4.0 x 106 (W/m2)/(W/m2)
Equivalent Background Input (EBI) 1.0 x 10-11 lm/cm2
Equivalent Background Input (EBI) 3.0 x 10-14 W/cm2
Limiting Resolution 32 Lp/mm
Operation Ambient Temperature -20 to +40 ℃
Storage Ambient Temperature -55 to +60 ℃
Maximum Shock 300 m/s2 (30G), 18 ms
Maximum Vibration 10 Hz to 55 Hz, 0.7 mm (p-p)
