Image intensifier

V7090U-71

Specifications

Feature Third Generation, Enhanced Red
Spectral Response (Short) 370 nm
Spectral Response (Long) 920 nm
Spectral Response (Peak) 600 to 700 nm
Input Window Borosilicate Glass
Index of Refraction 1.49

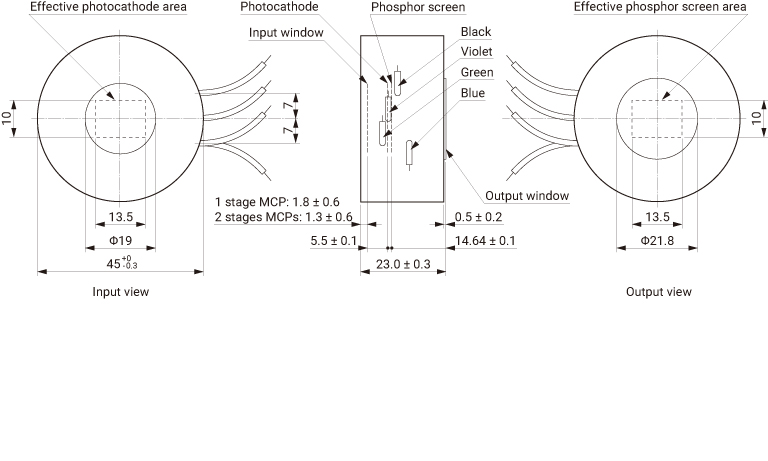

Effective Photocathode Area 13.5 x 10 mm
Stage of MCP 1, 2
Photocathode Material GaAs
Gate Function Yes / Non
Minimum Gate Time 5 ns / - ns
Luminous Sensitivity 1500 μA/lm
Radiant Sensitivity 170 mA/W
Quantum Efficiency (QE) 30 %
Luminous Gain 4.0 x 104 (lm/m2)/lx
Radiant Emittance Gain 1.2 x 104 (W/m2)/(W/m2)
Equivalent Background Input (EBI) 2.0 x 10-11 lm/cm2
Equivalent Background Input (EBI) 4.0 x 10-14 W/cm2
Limiting Resolution 64 Lp/mm
Operation Ambient Temperature -20 to +40 ℃
Storage Ambient Temperature -55 to +60 ℃
Maximum Shock 300 m/s2 (30G), 18 ms
Maximum Vibration 10 Hz to 55 Hz, 0.35 mm (p-p)
