|Feature||Third Generation, High Q.E.|
|Spectral Response (Short)||280 nm|
|Spectral Response (Long)||820 nm|
|Spectral Response (Peak)||480 to 530 nm|
|Input Window||Borosilicate Glass|
|Index of Refraction||1.49|

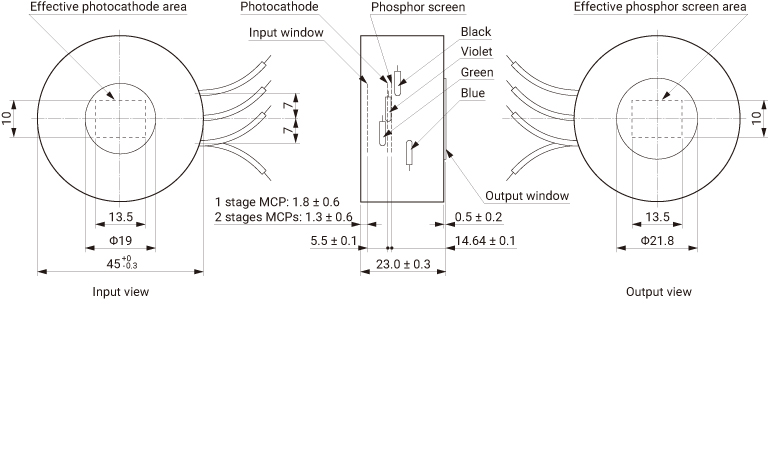

|Effective Photocathode Area||13.5 x 10 mm|
|Stage of MCP||1, 2|
|Photocathode Material||Enhanced red GaAsP|
|Gate Function||Yes / Non|
|Minimum Gate Time||5 ns / - ns|
|Luminous Sensitivity||800 μA/lm|
|Radiant Sensitivity||192 mA/W|
|Quantum Efficiency (QE)||45 %|
|Luminous Gain||2.5 x 104 (lm/m2)/lx|
|Radiant Emittance Gain||1.3 x 104 (W/m2)/(W/m2)|
|Equivalent Background Input (EBI)||3.0 x 10-12 lm/cm2|
|Equivalent Background Input (EBI)||8.0 x 10-15 W/cm2|
|Limiting Resolution||64 Lp/mm|
|Operation Ambient Temperature||-20 to +40 ℃|
|Storage Ambient Temperature||-55 to +60 ℃|
|Maximum Shock||300 m/s2 (30G), 18 ms|
|Maximum Vibration||10 Hz to 55 Hz, 0.35 mm (p-p)|
