Image intensifier

V9501U-73

Specifications

Feature Third Generation, High Q.E.
Spectral Response (Short) 280 nm
Spectral Response (Long) 820 nm
Spectral Response (Peak) 480 to 530 nm
Input Window Borosilicate Glass
Index of Refraction 1.49

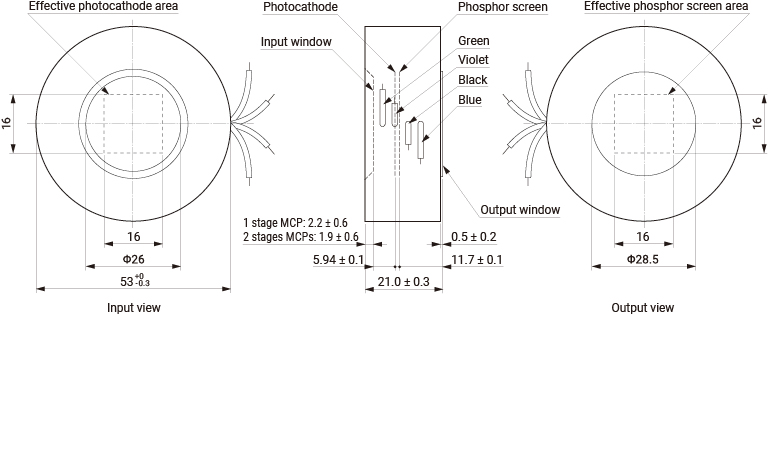

Effective Photocathode Area 16 x 16 mm
Stage of MCP 1
Photocathode Material Enhanced red GaAsP
Gate Function 有 / 無
Minimum Gate Time 5 ns / - ns
Luminous Sensitivity 800 μA/lm
Radiant Sensitivity 192 mA/W
Quantum Efficiency (QE) 45 %
Luminous Gain 2.5 x 104 (lm/m2)/lx
Radiant Emittance Gain 1.3 x 104 (W/m2)/(W/m2)
Equivalent Background Input (EBI) 3.0 x 10-12 lm/cm2
Equivalent Background Input (EBI) 8.0 x 10-15 W/cm2
Limiting Resolution 57 Lp/mm
Operation Ambient Temperature -20 to +40 ℃
Storage Ambient Temperature -55 to +60 ℃
Maximum Shock 300 m/s2 (30G), 18 ms
Maximum Vibration 10 Hz to 55 Hz, 0.35 mm (p-p)
