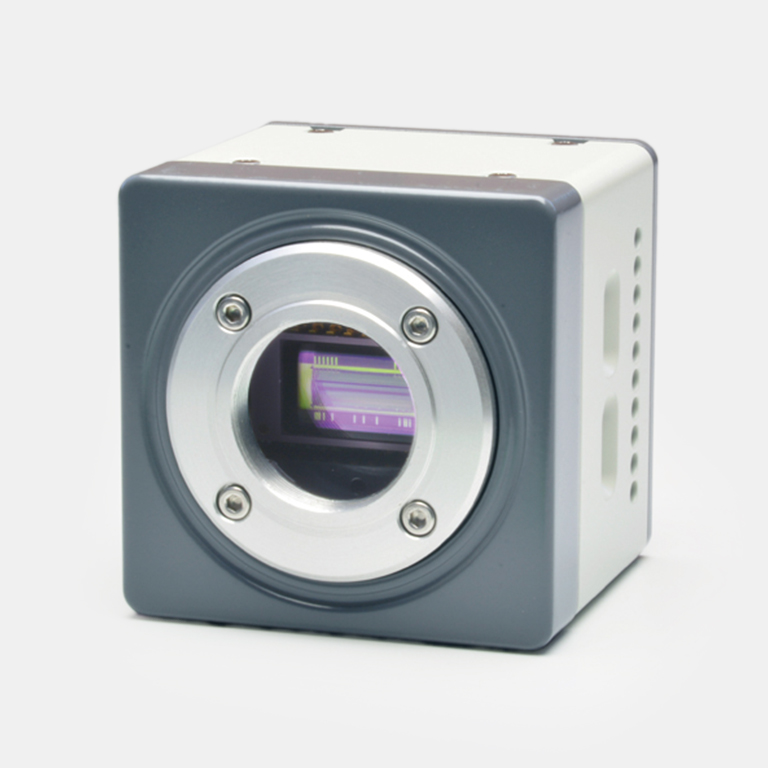

Image sensor module
This image sensor module is equipped with an InGaAs linear image sensor (G14714-1024DK). This product has sensitivity in the near infrared region of 0.95 to 1.7 µm, and is capable of readout at a high-speed line rate of of 40 klines/s. It transfers the acquired image signal to a PC via a USB 3.1 Gen1 interface. Various functions can be controlled with USB communication and an external trigger signal. The SMA connector for external trigger input is attached to main body, making it possible to synchronize operation design is necessary, and image acquisition can be done easily.
|Spectral response range||0.95 to 1.7 µm|
|Number of total pixels||1024|
|Pixel size||12.5 × 12.5 µm|
|Pixel pitch||12.5 µm|
|Image size||12.8 × 0.0125 mm|
|Note||Typ. Ta=25℃, unless otherwise noted|
