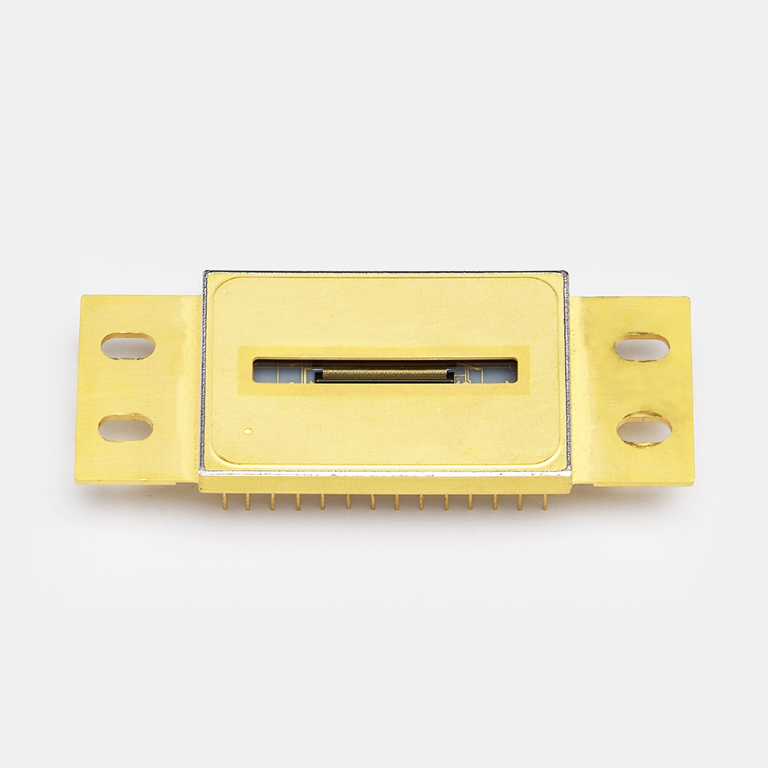

InGaAs linear image sensor
G11475 to G11478 series is an InGaAs linear image sensor designed for near infrared multichannel spectrophotometry. These linear image sensors consist an InGaAs photodiode array and charge amplifiers, offset compensation circuit, shift register, and timing generator formed on a CMOS chip. Charge amplifiers are configured with CMOS transistor array and are connected to each pixel of the InGaAs photodiode array. Since the signal from each pixel is read in charge integration mode, high sensitivity and stable operation are attained in the near infrared region. These sensors feature higher data rates and better linearity characteristics at high gain than the previous products. The package is hermetically sealed providing excellent reliability. The signal processing circuit on the CMOS chip enables the selection of a conversion efficiency (CE) from the available two types using external voltage.
|Image size||12.8 x 0.25 mm|
|Pixel size||50 x 250 μm|
|Pixel pitch||50 μm|
|Number of total pixels||256 pixels|
|Line rate (max.)||17200 lines/s|
|Spectral response range||900 to 1850 nm|
|Dark current (max.)||20 pA|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted Tchip=-20℃|
|Type no.||Image size||Pixel size||Pixel pitch||Number of total pixels||Line rate (max.)||Spectral response range|
|G9205-256WB||12.8 × 0.25 mm||50 × 250 μm||50 μm||256 pixels||1910 lines/s||900 to 1850 nm|
