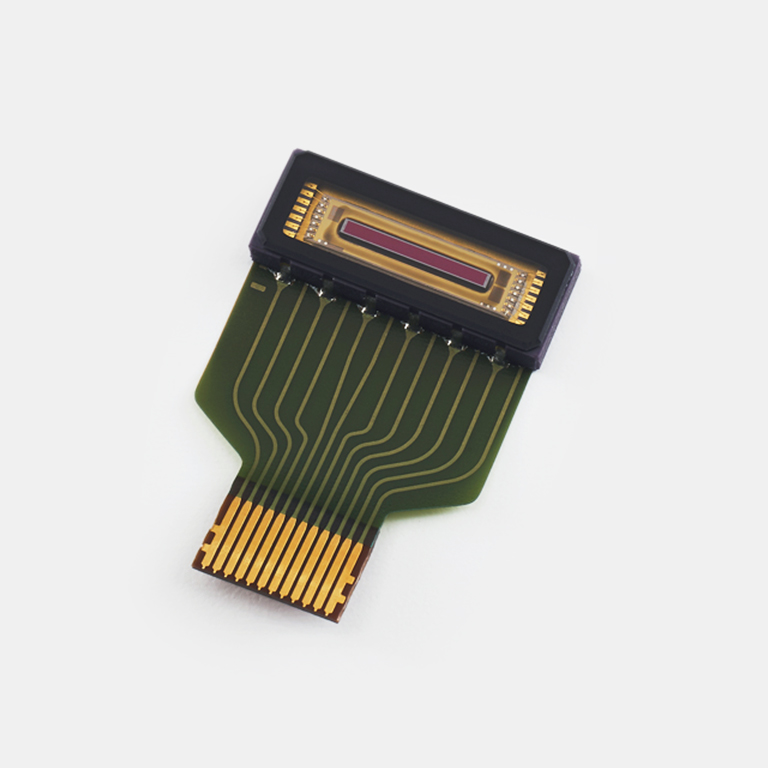

InGaAs linear image sensor

G13913-128FB

Near infrared image sensors for portable analytical instruments

The compact low-cost near infrared linear image sensors are designed for portable analytical instruments. They consume less current than the previous product (DIP package products: G11620 series). They are suitable for integration into compact thin devices because they employ a compact LCC package with a flexible board.


■Features
- Compact (with flexible board)
- 3.3 V drive
- Low current consumption: 15 mA
- Low cost
- 128 pixels (50 × 250 μm/pixel)
- Selectable from two conversion efficiency levels
- Built-in anti-saturation circuit
- Easy operation (built-in timing generator)

Image size 6.4 x 0.25 mm
Pixel size 50 x 250 μm
Pixel pitch 50 μm
Number of total pixels 128 pixels
Package Ceramic with flexible board
Cooling Non-cooled
Line rate (max.) 13600 lines/s
Spectral response range 950 to 1700 nm
Dark current (max.) 10 pA
Measurement condition unless otherwise noted, Typ. Ta=25 ℃, Vdd=3.3 V, INP=Fvref=Vhold=PDN=2.5V, Vclk=3.3 V, fop=1 MHz
