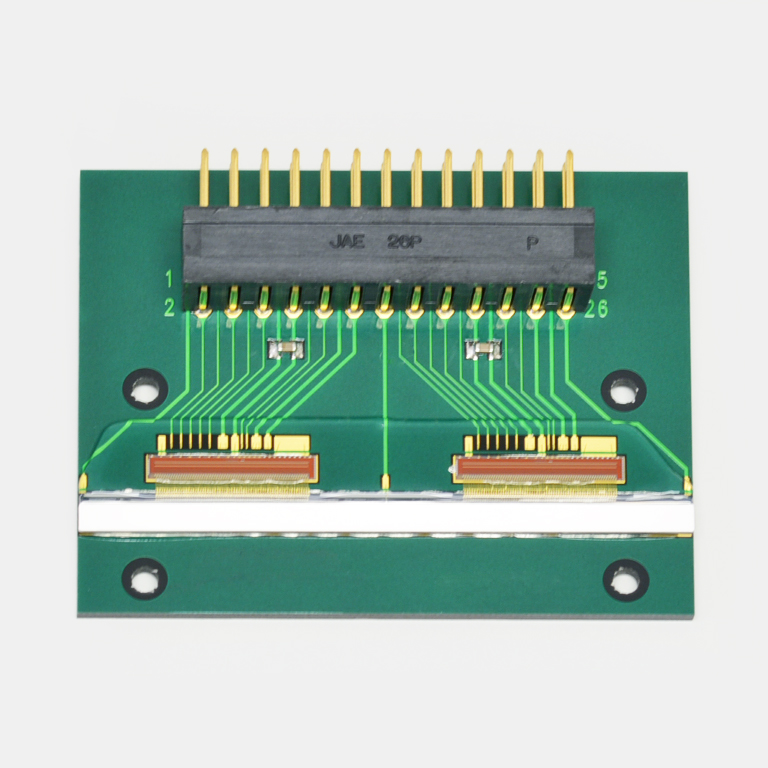

Photodiode array with amplifier
The S13885 series are photodiode arrays with amplifirs having a phosphor sheet attached to the photosensitive area for X-ray detection. Improvement in the signal processing IC chip has achieved higher sensitivity compared to the previous products (S11865 series). The signal processing IC chip is formed by CMOS process and incorporates a timing generator, shift register, charge amplifir array, clamp circuit and hold circuit, making the external circuit confguration simple. A long and narrow image sensor can be confgured by arranging multiple arrays in a row.
|Image size||51.2 x 0.6 mm|
|Number of effective pixels||128 pixels|
|Pixel size||0.3 x 0.6 mm|
|Pixel pitch||0.4 mm|
|Supply voltage||3.3 V|
|Peak sensitivity wavelength||720 nm|
|Line rate max.||7568 lines/s|
|Charge amp feedback capacitance||0.125 pF|
|Note||for X-ray, High sensitivity type|
|Measurement condition||Typ. Ta=25 ℃, unless otherwise noted, peak sensitivity wavelength: without phosphor sheet|
