InAsSb photovoltaic detector array

P15742-046DS

46 element array capable of detecting up to 5 μm band

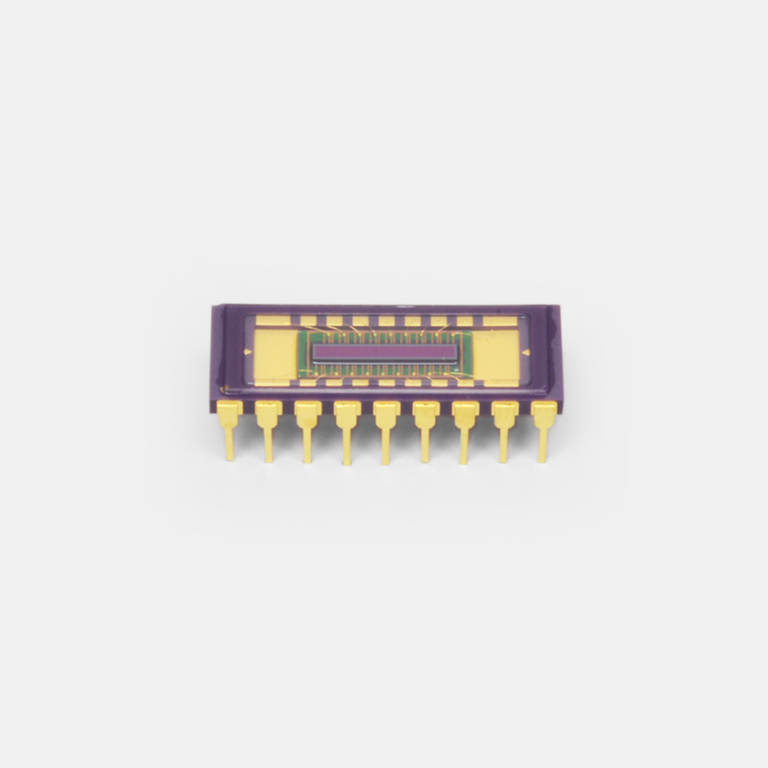

The P15742 series is one-dimensional InAsSb photovoltaic detector array in a ceramic DIP (dual inline package). They have a back-illuminated structure that achieves low crosstalk. These are environmentally friendly infrared detectors that do not use lead, mercury, or cadmium, which are substances restricted by the RoHS Directive.


Features
-High sensitivity
-Low crosstalk
-RoHS compliant (lead, mercury, cadmium free)

Element size/element 0.2×0.7 mm
Number of elements 46
Package 48-pin ceramic DIP
Cooling Non-cooled
Cutoff wavelength (typ.) 5.3 μm
Peak sensitivity wavelength (typ.) 4.1 μm
Photosensitivity (typ.) 0.0146 A/W
Detectivity D* (typ.) 1×109 cm・Hz1/2/W
Noise equivalent power (typ.) 4.2×10-11 W/Hz1/2
Rise time (typ.) 15 ns
Terminal capacitance (typ.) 50 pF
Measurement condition Ta=25℃, Detectivity D*: (λp, 1200, 1), Terminal capacitance: VR=0 V, f=1 MHz

Spectral response

Dimensional outline (unit: mm)
